Product Details:
Payment & Shipping Terms:
|
| Material Thickness: | 0.2-0.8mm | Raw Material: | PPGI, PI, CR, Q235 |
|---|---|---|---|
| Usage: | Roof, Floor, Wall Ect. | Workers Needed: | 2 Person |
| Electrical Control System: | Auto PLC | Working Time: | Can Be 24 Hours |
| Coil Width: | Custom-made, 1000/1200 /1250 Mm | Forming Stations: | 13-22 Stations ( Depend On Profiles ) |
| High Light: | cold roll forming machine,roll forming equipment |
||

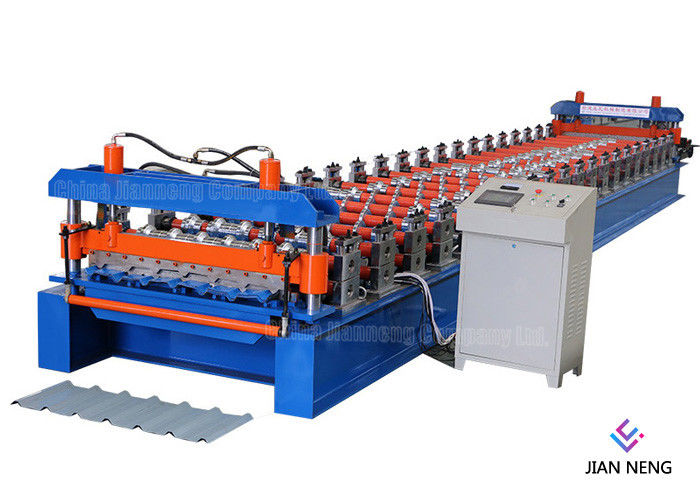

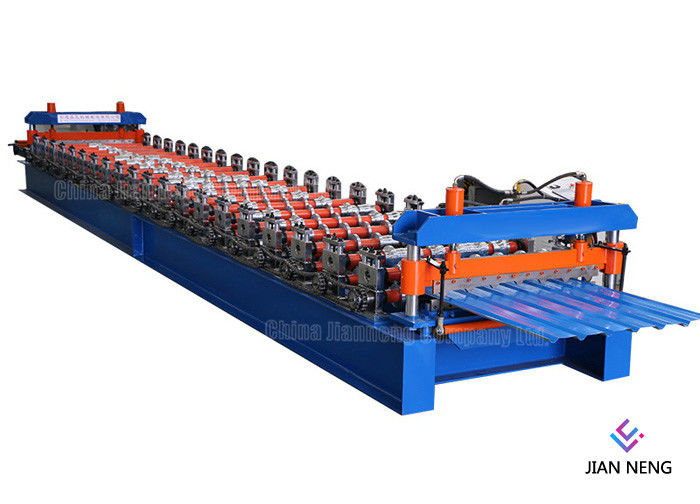

0.3 - 0.8mm Color Steel , Metal Roof Panel Roll Forming Machine With PLC Control System
Description & Application:
Construction,Store Fixture,Metal roof wall cladding, roof wall panel, Metal Roof sheet, trapezoidal roof metal, trapezoidal roofing, trapezoidal panel,corrugated roofing, corrugated panel,metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding,wall panel
Specification / Technical Parameter:
| Item | Metal Roof Sheet / Roof Panel Roll Forming Machine | |
| Coil Material | Coil width | Custom-made, 1000/1200 /1250 mm |
| Sheet thickness | 0.3-0.8 mm | |
| Yield Strength | 350-500 Mpa | |
| Material | PPGI, Color Steel, GI. | |
| Decoiler / Uncoiler | Decoiler Type | Manual or Hydraulic or Auto Type |
| Coil Weight | 5 tons | |
| Coil Width | Max. 1250mm | |
| I.D | 440-530mm | |
| O.D | Max.1500mm | |
| Steel roof forming machine | Forming Stations | 13-22 Stations ( Depend on Profiles ) Usually:18 Stations |
| Roller material | 45# steel, surface coated with 0.05mm hard chrome | |
| Diameter of shaft | 76mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chain transmission---16A | |
| Sprockets | Quenched and black treated | |
| Forming speed | 0-20m/min | |
| Speed adjust | Panasonic VFD | |
| Main power | 5.5KW | |
| Cutting | Cutting type | Hydraulic Scissor cutting |
| Cutting Die Material | Cr12Mov steel, HRC58-62 | |
| Cutting power | 4 KW (Hydraulic station) | |
| Cutting Tolerance | 10m+/-1.5mm | |
| Encoder | OMRON Brand | |
| Electrical control | PLC | Panasonic Brand |
| Inverter | Siemens Brand | |
| Touch screen | Panasonic | |
| Operation type | Touch screen & Button | |
| Main units | Schneider | |
| Hydraulic Station | Hydraulic Units | Famous Chinese brand |
| Runout Table | Table type | Simple non power type |
| Function | To support the finished panel | |
Feature & Advantages of Metal Roof Panel Roll Forming Machine:
1. Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.
2. Considerate service: we provide the technical support for whole life of our machines.
3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4. Easy operation:All machine cotrolling by PLC computer controlling systerm.
5. Elegant apperance:Protect the machine from rust and the painted colour can be customized
6. Reasonable price:We offer the best price in our industry.
Reference Roof Profile Drawings:
