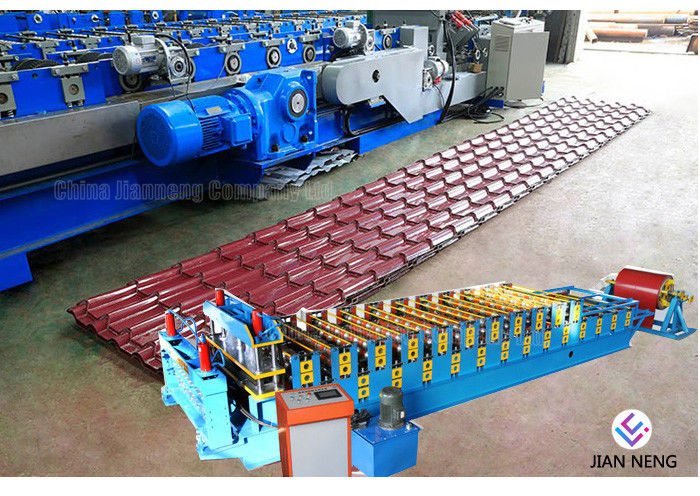

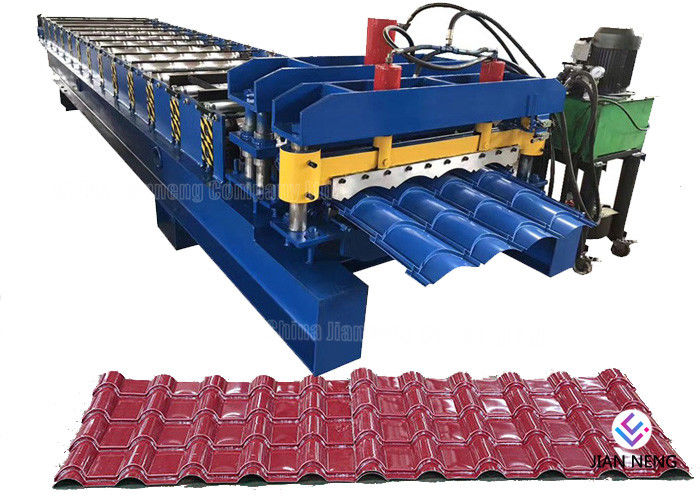

Glazed Tile Corrugated Steel Roofing Sheet Roll Forming MachineWith 18 Forming Stations
Description & Application:
The roofing panel machines can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short buildi-ng period , beauty, light weight but high strength.
Specification / Technical Parameter
Item | Glazed Tile Corrugated Steel Roofing Sheet Roll Forming Machine | |
Coil Material | Coil width | Custom-made, 1000/1200 /1250 mm |
Sheet thickness | 0.3-0.8 mm | |
Yield Strength | 350-500 Mpa | |
Material | PPGI, Color Steel, GI. | |
Decoiler / Uncoiler | Decoiler Type | Manual or Hydraulic or Auto Type |
Coil Weight | 5 tons | |
Coil Width | Max. 1250mm | |
I.D | 440-530mm | |
O.D | Max.1500mm | |
Steel roof forming machine | Forming Stations | 13-22 Stations ( Depend on Profiles ) Usually:18 Stations |
Roller material | 45# steel, surface coated with 0.05mm hard chrome | |
Diameter of shaft | 76mm | |
Shaft material | High grade 45# steel | |
Drive type | Chain transmission---16A | |
Sprockets | Quenched and black treated | |
Forming speed | 0-20m/min | |
Speed adjust | Panasonic VFD | |
Main power | 5.5KW | |
Cutting | Cutting type | Hydraulic Scissor cutting |
Cutting Die Material | Cr12Mov steel, HRC58-62 | |
Cutting power | 4 KW (Hydraulic station) | |
Cutting Tolerance | 10m+/-1.5mm | |
Encoder | OMRON Brand | |
Electrical control | PLC | Panasonic Brand |
Inverter | Siemens Brand | |
Touch screen | Panasonic | |
Operation type | Touch screen & Button | |
Main units | Schneider | |
Hydraulic Station | Hydraulic Units | Famous Chinese brand |
Runout Table | Table type | Simple non power type |
Function | To support the finished panel |
Machine composition of Glazed Tile Corrugated Steel Roofing Sheet Roll Forming MachineWith 18 Forming Stations
No. | Name | Unit | Qty |
1 | Decoiler | Set | 1 |
2 | Film covering device | Set | 1 |
3 | Feeding guide | Set | 1 |
4 | Main roll forming machine | Set | 1 |
5 | Hydraulic pressing device | Set | 1 |
6 | Hydraulic cutting device | Set | 1 |
7 | Hydraulic Station | Set | 1 |
8 | PLC computer control | Set | 1 |
9 | Output table | Set | 1 |
Working Follow:
Decoiler --- Feeding Guide --- Film Covering --- Roll Forming --- Pressing --- Cut-to-length --- Run out table
Feature & Advantages:
Glazed Tile Corrugated Steel Roofing Sheet Roll Forming MachineWith 18 Forming Stations
1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.
2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
4. It is very easy to install the equipment and suitable for producing in the factory.
5. The machine has features of low noise and high efficiency
Contact Person: Shirley
