Galvanized Type C / Z Purlin Roll Forming Machine With Hydraulic Cutting System

Galvanized Type C / Z Purlin Roll Forming Machine With Hydraulic Cutting System
Galvanized Type C / Z Purlin Roll Forming Machine With Hydraulic Cutting System Galvanized Type C / Z Purlin Roll Forming Machine With Hydraulic Cutting System

Large Image :  Galvanized Type C / Z Purlin Roll Forming Machine With Hydraulic Cutting System

Product Details:

Place of Origin: Hebei, China
Brand Name: JN
Certification: CE ISO
Model Number: Customize

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Seaworthy Packing
Delivery Time: about 20 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50 Sets per month
Detailed Product Description
Material Thickness: 0.2-0.8mm Cutting Material: Cr12
Speed Of Forming: 10-15m/min Workers Needed: 2 Person
Type: Roll Forming Machine Name: C / Z Purlin Roll Forming Machine
High Light:

cold roll forming machine

,

steel rolling machine

Galvanized Type C / Z Purlin Steel Structure Roof Panel Roll Forming Machine





Description & Application:



C/Z purlin interchangeable roll former can produce C, Z profiles. Produce from C to Z purlin by switch one side roller, only need about 15 minutes. This machine also can adjust roller horizontal distance to achieve C or Z purlins of the width with high precision automatic. And also save time and increase production.



Specification / Technical Paramete



Product Name C/Z Purlin Roll Forming Machine
Machine Size 11000mm*1500mm*1000mm(Actual size based)
Machine Weight About 10 T
Frame Materials 350H steel
Middle plate thickness 14mm
Forming Shaft Diameter 80mm
Material 40Cr Heat treatment
Forming roller Gr15Bearing steel, whole quenching, HRC58
Cutting System Hydraulic Cutting
Drive mode 6 points sprocket, chain / 1 inch sprocket, chain
Main Engine power 18.5 KW with cycloidal reducer
Fast moving motor power 2.2kw/set (A total of one)
Forming Rows 18 rows
Forming Speed 10-16m/min
Pressing Thickness 1.5-3mm
Coil material Galvanized Coils: Q195-Q235
Punching die, cutting machine blade material High quality Cr12MoV
Punching, cutting machine cylinder number 2
Hydraulic station power 7.5kw
Hydraulic pressure Max 30Mpa
Electric Control System International, domestic brands, mainly by Panasonic, Yaskawa, OMRON brand
Transducer SIEMENS
Encoder OMRON



Machine composition of Color Steel Metal Glazed Tile Roll Forming Machine For Outdoor Decorate



No. Name Unit Qty
1 Decoiler set 1
2 Main Machine for roll forming set 1
3 Control System(PLC) set 1
4. Hydraulic oil pump set 1
5. Product stand set 1



Feature & Advantages:



Galvanized Type C / Z Purlin Steel Structure Roof Panel Roll Forming Machine



1. Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.

2. Considerate service: we provide the technical support for whole life of our machines.

3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4. Easy operation:All machine cotrolling by PLC computer controlling systerm.

5. Elegant apperance:Protect the machine from rust and the painted colour can be customized

6. Reasonable price:We offer the best price in our industry.

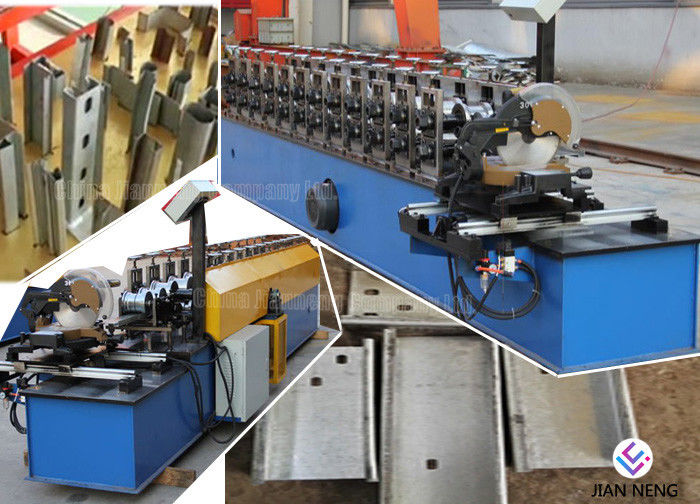

Galvanized Type C / Z Purlin Roll Forming Machine With Hydraulic Cutting System 0

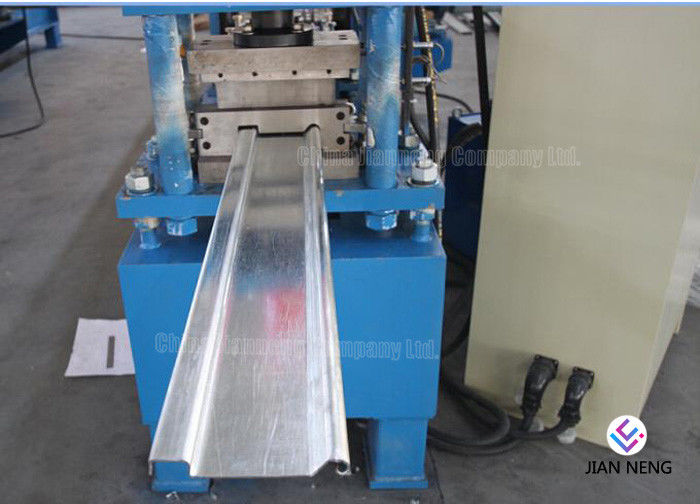

Galvanized Type C / Z Purlin Roll Forming Machine With Hydraulic Cutting System 1



Galvanized Type C / Z Purlin Roll Forming Machine With Hydraulic Cutting System 2
