Description & Application:
Construction,Store Fixture,Metal roof wall cladding, roof wall panel, Metal Roof sheet, trapezoidal roof metal, trapezoidal roofing, trapezoidal panel,corrugated roofing, corrugated panel,metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding,wall panel

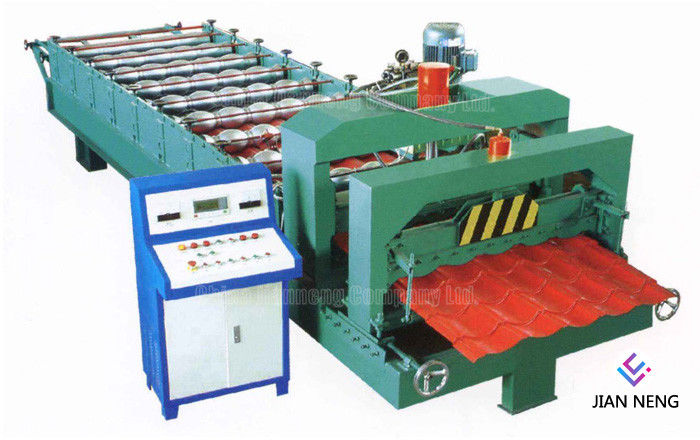

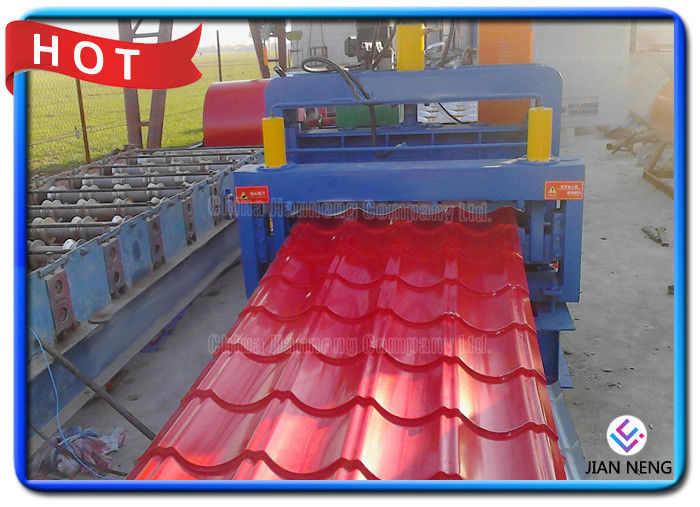

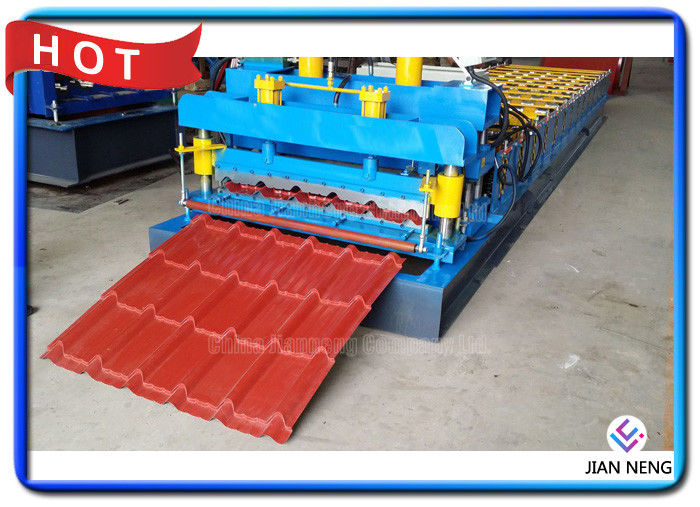

Reference Specifications of Glazed Tile Roll Forming Machine:
· Material thickness: 0.3-0.7mm,Color Steel, Galvanised coil
· Material width: depend on customer’s requirement
· Decoiler Type: manual or automatical type ( depend on customer’s requirement )
· Weight Capacity Of Decoiler: 5 Ton
· Main Motor Power: 5.5 Kw
· Hydraulic Motor Power: 11 Kw
· Forming Station: 18( depend on profile drawing )
· Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
· Main Axis Material: High grade 45#, quenched and heat treatment.
· Axis Diameter: ¢ 75mm
· Working Speed: 0-15 m/min
· Transporting Type: Chain Transmission
· Heat Treatment of Cutting Blade: HRC 50-60
· Type of Cutting: Hydraulic cutting
· Material Of Cutting Blade: C r 12
· Heat Treatment of Cutting Blade: HRC 50-60
· Machine Frame stand: Welded structural steel
· Thickmess of Fame Steel: 18mm
· Electrical Control: PLC Frequency Control System with touch screen
· PLC: PANASONIC Brand
· Encoder: OMRON Brand
· Transducer: PANASONIC Brand
· Machine Weight: about 8.5 Ton
Main Components
· Decoiler -------------------------------------------------- 1 Unit
· Film covering device --------------------------------- 1 Unit
· Feeding guide ------------------------------------------ 1 Unit
· Main roll forming machine --------------------------- 1 Unit
· Hydraulic pressing device --------------------------- 1 Unit
· Hydraulic cutting device ------------------------------ 1 Unit
· Hydraulic Station --------------------------------------- 1 Unit
· PLC computer control --------------------------------- 1 Unit
· Output table ----------------------------------------------- 1 Unit
Working Flow
Decoiler --- Fedding Guide --- Film Covering --- Roll Forming --- Pressing --- Cut-to-length --- Run out table
Feature & Advantages of Metal Roof Panel Roll Forming Machine:
1. Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.
2. Considerate service: we provide the technical support for whole life of our machines.
3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4. Easy operation:All machine cotrolling by PLC computer controlling systerm.
5. Elegant apperance:Protect the machine from rust and the painted colour can be customized
6. Reasonable price:We offer the best price in our industry.
