Corrugated Roll Forming Machine , Roofing Sheet Making Machine 5.5KW

Corrugated Roll Forming Machine , Roofing Sheet Making Machine 5.5KW

cold roll forming machine

roll forming equipment

Place of Origin:

Hebei, China

Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Material Thickness:
Raw Material:
PPGI, PI, CR, Q235
Roof, Floor, Wall Ect.
Workers Needed:
2 Person
Electrical Control System:
Auto PLC
Working Time:
Can Be 24 Hours
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Seaworthy Packing
Delivery Time
about 20 days
Payment Terms
T/T, Western Union, L/C
Supply Ability
50 Sets per month
Product Description

Corrugated Roll Forming Machine , Roofing Sheet Making Machine 5.5KW



Description & Application:


Construction,Store Fixture,Metal roof wall cladding, roof wall panel, Metal Roof sheet, trapezoidal roof metal, trapezoidal roofing, trapezoidal panel,corrugated roofing, corrugated panel,metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding,wall panel


Specification / Technical Parameter:


Item Steel Roof Sheet / Roof Panel Roll Forming Machine
Coil Material Coil width Custom-made, 1000/1200 /1250 mm
Sheet thickness 0.3-0.8 mm
Yield Strength 350-500 Mpa
Material PPGI, Color Steel, GI.
Decoiler / Uncoiler Decoiler Type Manual or Hydraulic or Auto Type
Coil Weight 5 tons
Coil Width Max. 1250mm
I.D 440-530mm
O.D Max.1500mm
Steel roof forming machine Forming Stations 13-22 Stations ( Depend on Profiles ) Usually:18 Stations
Roller material 45# steel, surface coated with 0.05mm hard chrome
Diameter of shaft 76mm
Shaft material High grade 45# steel
Drive type Chain transmission---16A
Sprockets Quenched and black treated
Forming speed 0-20m/min
Speed adjust Panasonic VFD
Main power 5.5KW
Cutting Cutting type Hydraulic Scissor cutting
Cutting Die Material Cr12Mov steel, HRC58-62
Cutting power 4 KW (Hydraulic station)
Cutting Tolerance 10m+/-1.5mm
Encoder OMRON Brand
Electrical control PLC Panasonic Brand
Inverter Siemens Brand
Touch screen Panasonic
Operation type Touch screen & Button
Main units Schneider
Hydraulic Station Hydraulic Units Famous Chinese brand
Runout Table Table type Simple non power type
Function To support the finished panel

Feature & Advantages:


1. Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.

2. Considerate service: we provide the technical support for whole life of our machines.

3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4. Easy operation:All machine cotrolling by PLC computer controlling systerm.

5. Elegant apperance:Protect the machine from rust and the painted colour can be customized

6. Reasonable price:We offer the best price in our industry.

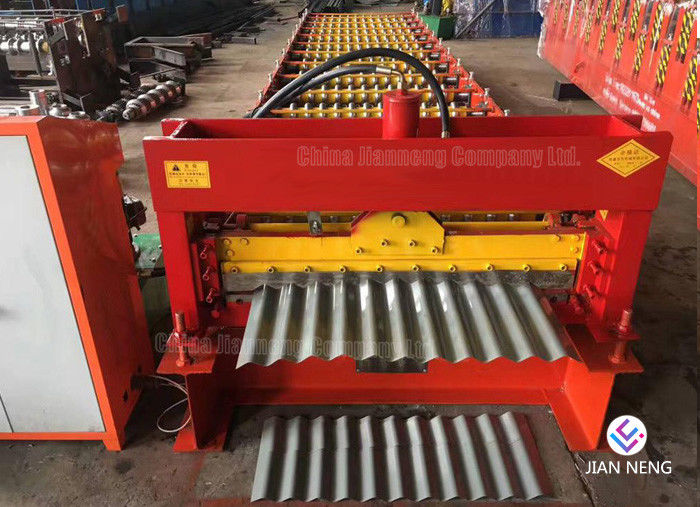

Corrugated Roll Forming Machine , Roofing Sheet Making Machine 5.5KW 0

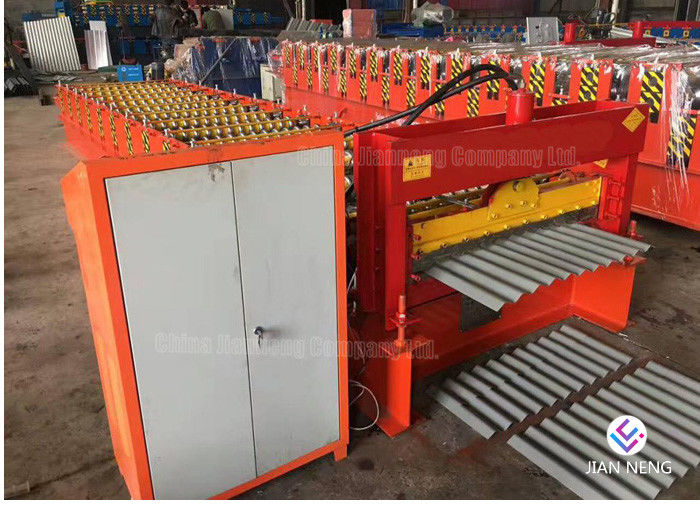

Corrugated Roll Forming Machine , Roofing Sheet Making Machine 5.5KW 1
