C Z Shaped Grid Roof Panel Roll Forming Machine / Hydraulic System Metal Roof Forming Machine

C Z Shaped Grid Roof Panel Roll Forming Machine / Hydraulic System Metal Roof Forming Machine
C Z Shaped Grid Roof Panel Roll Forming Machine / Hydraulic System Metal Roof Forming Machine C Z Shaped Grid Roof Panel Roll Forming Machine / Hydraulic System Metal Roof Forming Machine C Z Shaped Grid Roof Panel Roll Forming Machine / Hydraulic System Metal Roof Forming Machine C Z Shaped Grid Roof Panel Roll Forming Machine / Hydraulic System Metal Roof Forming Machine

Large Image :  C Z Shaped Grid Roof Panel Roll Forming Machine / Hydraulic System Metal Roof Forming Machine

Product Details:

Place of Origin: Hebei, China
Brand Name: JN
Certification: CE ISO
Model Number: Customize

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Seaworthy Packing
Delivery Time: about 20 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50 Sets per month
Detailed Product Description
Material Thickness: 0.4-0.7mm Yield Strength: 235MPa 345MPa And 550MPa.
Automatic:: PLC Controlled, Full Automatic Material: Powered , Galvanized , Aluminum
Rolling Shaft Material: 45 # Steel Speed: 8-15M/Min
High Light:

metal roof forming machine

,

metal roof roll forming machine

C Z Shaped Grid Roof Metal Tack Ceing Roll Forming Machine​ Automatic Hydraulic System





Description :



Roof curving crimping machine Steel Crimping Machine Curved Roofing Sheet Machine hydraulic curving machine roof curving machine is also the nickname of the following name. This type roofing sheet crimping machine has two types: one is for motor type and the other is hydraulic type.



Specification / Technical Parameter



Series Details Parameter




Roll forming machine




Guiding&leveling device

Placed on the machine by seller
Shaft numbers:11pcs
Shaft diameter:80mm
Shaft material: 45# steel
Drive power:5.5kw
Rolling shaft material 45# STEEL
Shaft diameter 90mm
Roller material GB-Cr15 with heat treatment
Rolling station 15 stations
Machine frame Cast iron vertical structure
Machine body 400# H steel welded
Bearing Chinese famous brand Harbin
Work power 22kw




Control system

Frequency brand Delta from Taiwan
PLC brand Delta from Taiwan




Hydraulic system

Work type Hydraulic
Punch mode Four pillar hydraulic powered punching system
Driving method By Cylinder
Motor power 22kw
Mold material GB-Cr12
Mold quantity 2 sets
Punching frame 1 set
Press power 80T
Cutting length tolerance ±1.5mm



Components of Metal Roofing Machine / Curving Machine

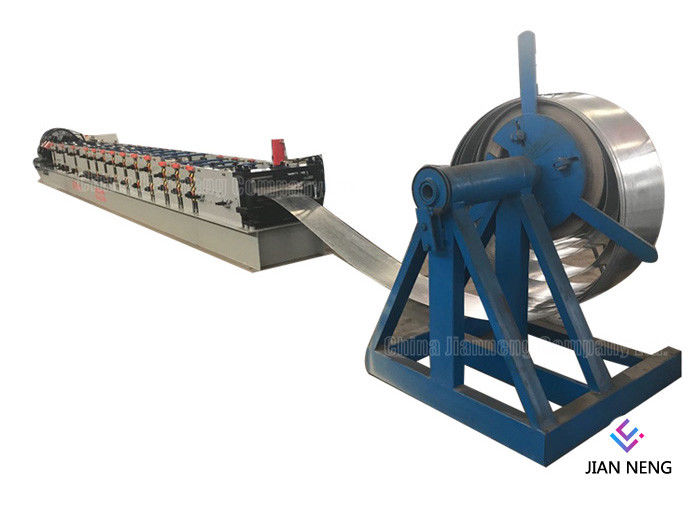

1.Manual De-coiler or Hydraulic De-coiler 5t (optional)

2.Feeding device

3.Straightenting device

4.Roll Forming Machine

5.Cutting device

6.PLC control system

7.Exit Rack

8.Hydraulic Station



Work Flowing:

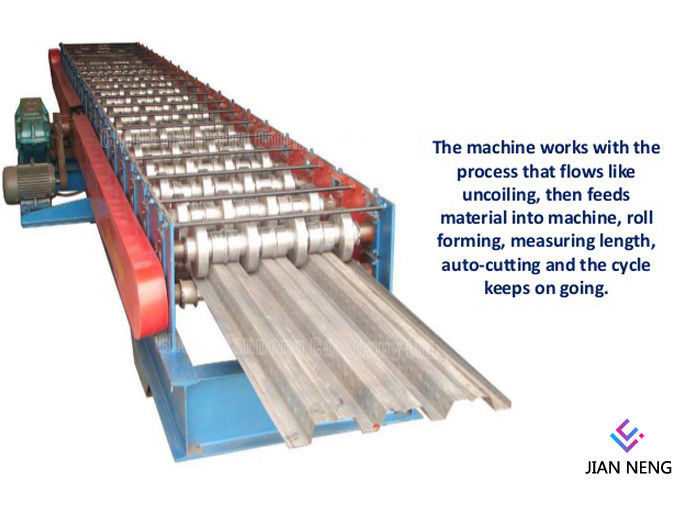

Decoiler --- Feeding Guide --- Film Covering --- Roll Forming --- Pressing --- Cut-to-length --- Run out table





Feature & Advantages:



C Z Shaped Grid Roof Metal Tack Ceing Roll Forming Machine Automatic Hydraulic System



1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong



2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.



3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.



4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.



5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.



6. powerful driving system: big inch train,or gear box driving system.



6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
