Product Details:
Payment & Shipping Terms:
|
| Color Of Machine: | Blue, Grey Or As Your Request | Automatic:: | Auto PLC Control Hydraulic |
|---|---|---|---|
| Cutting Blade Material: | Cr12 | Material Thickness: | 1.5-3mm |
| Usage: | C U Z Purlin | OEM Service: | Yes |
| High Light: | roll forming equipment,steel rolling machine |
||

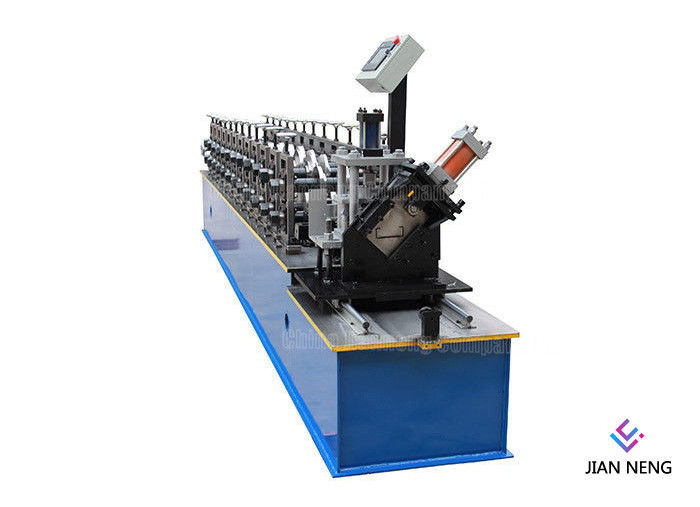

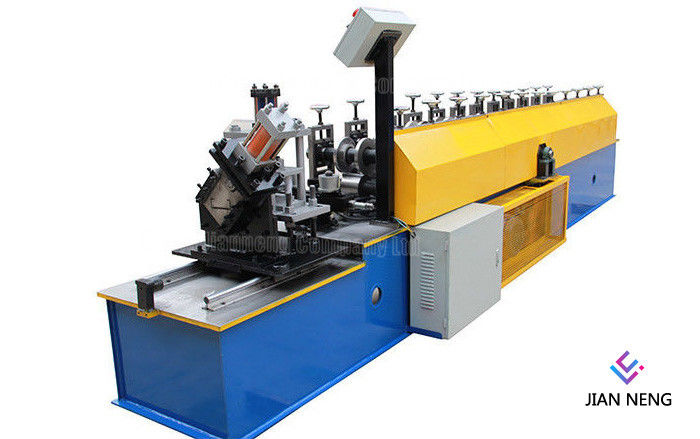

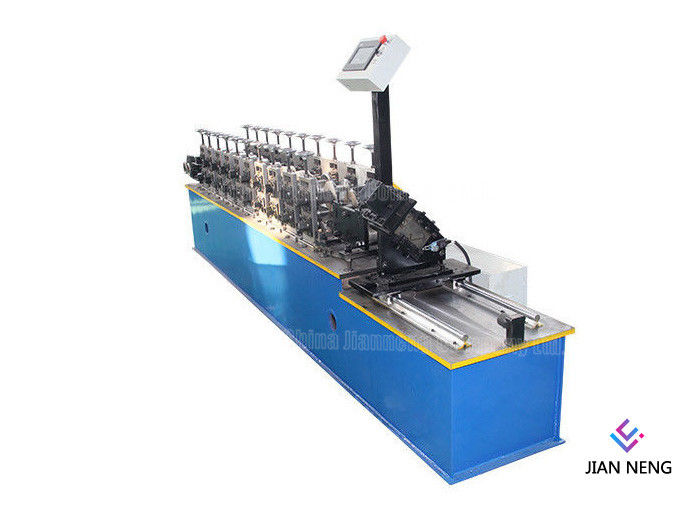

Full Auto C Z U L W Shape Purlin Roll Forming Machine With 1.5 - 3 mm Thickness
Description:
The finished product of C Z U L W Shape Purlin Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses,supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
Technical Parameter:
| Full Auto C Z U L W Shape Purlin Roll Forming Machine With 1.5 - 3 mm Thickness | |
| Material thickness | 1.5~3.0mm |
| Material yield stress | 230~550 Mpa |
| Max. forming speed | 8~25m/min |
| Roller material | 45# steel with chrome treatment |
| Roller driven type | Chain transmission |
| Controller & operation | PLC & touch screen and button |
| Hydraulic system pressure | 12 Mpa |
| Hydraulic station motor power | 3 Kw |
| Main motor power | 4~5.5Kw |
| Total power | 7~8.5Kw |
| Total weight | About 6000~8000 Kgs |
Packaging Detail of stud and track roll forming machine :
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
| How to choose the machine suitable for you: |
|
1. What is the exact profile you want to produce? 2. What kind of material you will use, such as steel or aluminium, max coil weight, thickness? 3. What kind of decoiler and stacker you need? Tell me those data, we can help you choose the suitable machine for you. |
| Welcome to contact us for more information , we will do my best for our friends. |
