Soundproof 20x30m Aluminum Frame Tent With ABS SideWall Glass Sidewall

Soundproof 20x30m Aluminum Frame Tent With ABS SideWall Glass Sidewall

aluminum frame canopy tents

aluminium event tent

Place of Origin:

Hebei, China

Brand Name:




Model Number:

Customized Tent

Contact Us
Request A Quote
Product Details
Main Material:
Aluminum Alloy
PVC Walls,glass Wall,ABS Wall,etc.
Fabric Color:
White,black,red Or As Requested
Width Of Tent:
Eave Height:
Standard 2.5m, 3m, 4m, 5m Upon Span Width
Max Wind Allowed:
100km/h ( 0.3-0.5kn/sqm )
Waterproof, Fire-retardant And Sunlight Proof
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
1.aluminum frame packed in box; 2.hardware packed in solid carton box; 3.roof and sidewall in professional PVC carry bag; 4.customized package
Delivery Time
About 15 days
Payment Terms
T/T, Western Union
Supply Ability
10000 Sets Per Month
Product Description

Soundproof 20x30m Party Tent For Events With ABS SideWall Glass Sidewall



1. Application:


Widely used for private & corporate party, celebration, outdoor exhibition & Expo , trade show, commercial activity, sports events, temporary warehouse & workshop, military, relief & emergency solution, semi-permanent or permanent industry facility, entertainment space, etc.


2. Product technical parameter of outdoor tent:


Frame hard pressed extruded aluminum alloy
Wind Resistance 100km/h
Fixing Solution ground anchor, expandable bolt, weight plate, etc.
Service Life More than 15 years
Temperature Resistance -30 degree Celsius ~ +70 degree Celsius
Ground Situation grassland,earth land,asphalt,cement ground,marble,etc
Side Wall PVC walls,glass wall,ABS wall,sandwich panel wall,etc.
Roof Cover 850g/sqm double PVC-coated polyester textile
Connectors Hot-DIP Galvanized
Usage party, event, exhibition, wedding, sports, warehouse, garage, and etc
Side wall fabric 650g/sqm double PVC-coated polyester textile
flame retardant DIN4102,B1/M2,NFPA701


Span Width Eave height Ridge Height Bay Distance Main Profile
4m 2.7m 3.4m 3m 122x68x3mm(4-channel)
5m 2.7m 3.5m 3m 122x68x3mm(4-channel)
6m 2.7m 3.7m 3m 122x68x3mm(4-channel)
8m 2.7m 4.15m 3m 122x68x3mm(4-channel)
10m 2.7m 4.5m 3m 203x110x4.5mm(4-channel)
12m 2.7m 4.65m 3m 203x110x4.5mm(4-channel)
15m 4m 8.03m 5m 203x110x4.5mm(4-channel)
20m 4m 10.37m 5m 254x120x5mm(4-channel)
25m 4m 10.37m 5m 254x120x5mm(4-channel)
30m 4m 10.35m 5m 350x125x6mm(4-channel)
40m 4m 10.5m 5m 350x125x6mm(4-channel)
50m 4m 10.5m 5m 350x125x6mm(4-channel)


3. Optional accessories:


Covers: colourful cover, transparent cover, inflatable roof cover

Windows: dome or square clear PVC windows, mesh window, glass window for glass wall

Wooden Flooring System: VIP cassette flooring, simple cassette flooring

Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)

Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall

Fixing Methods: ground anchors, weight plate, expandable bolts

Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents

Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.

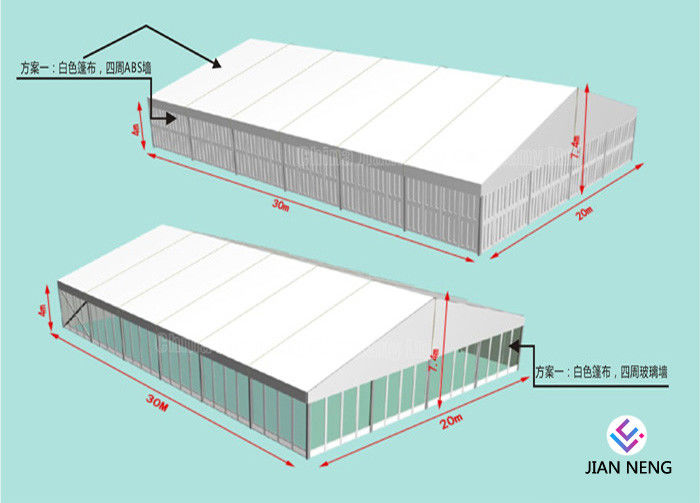

Soundproof 20x30m Aluminum Frame Tent With ABS SideWall Glass Sidewall 0

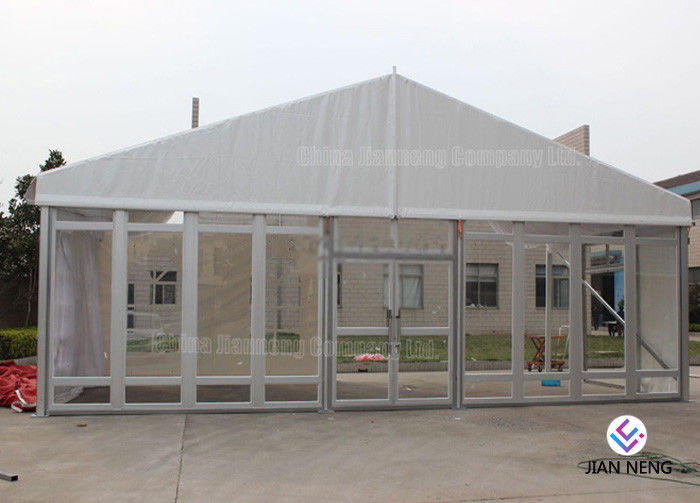

Soundproof 20x30m Aluminum Frame Tent With ABS SideWall Glass Sidewall 1
