Product Details:
Payment & Shipping Terms:
|
| Main Material: | Aluminum Alloy GB6061/T6 | Frame Finish: | Powder Coated |
|---|---|---|---|
| Fabric Color: | Transparent,White,black,red Or As Requested | Width Of Tent: | 3m-40m |
| Eave Height: | Standard 2.5m, 3m, 4m, 5m Upon Span Width | Max Wind Allowed: | 100km/h ( 0.3-0.5kn/sqm ) |
| Usage: | Party,event,wedding,church, Exhibition,warehouse | Feature: | Waterproof, Fire-retardant And Sunlight Proof |
| Optional Parts: | Air Condition, Fan, Light, Floor, Door, Roof Lining & Curtain Etc. | Installation: | Instruction Book, Video And Engineers |
| High Light: | aluminum frame canopy tents,outside party tents |
||

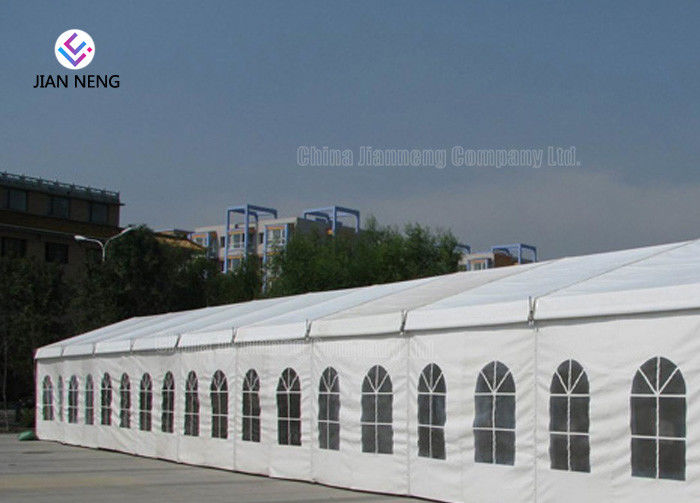

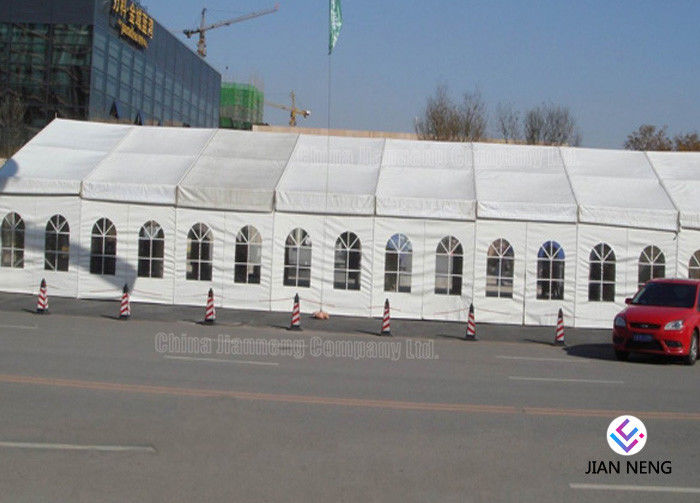

Outdoor Waterproof Canopy Tent UV Resistant For 200 People Gathering Event
1. Specifications
1) Size: from 3 meters to 40meters
2) Eave height: standard from 2.5m, 3m, 4m to 5m upon span width (or special height per requested)
3) Length: Unlimited, extended by 3m or 5m each bay
2. Frame part
1) The main parts are made of aluminum alloy and the spare parts are made of steel.
2) All aluminum components are technically anodized and all steel parts are well hot-dip galvanized.
3. Cover Part
1) The roof and sidewall fabric cover are made of double coated PVC.
2) The fabric is waterproof and UV resistant.
3) The fabric is flame retardant to DIN4102, M2 and Grade B1.
4) The weight of fabric is from 650g/sqm to 850g/sqm.
4. Product technical parameter of large tent:
|
Span width (m) |
Bay spacing (m) |
Eave height (m) |
Ridge height (m) |
Main frame profile (mm) |
| 3 | 3 | 2.5 | 3 | 48×84×3 |
| 6 | 3 | 2.5 | 3.5 | 48×84×3 |
| 8 | 3 | 2.5 | 3.9 | 48×84×3 |
| 10 | 3 | 2.5 | 4.3 | 48×84×3 |
| 15 | 5 | 4 | 6.43 | 108×150×3 |
| 18 | 5 | 4 | 6.9 | 112×203×4.5 |
| 20 | 5 | 4 | 7.2 | 112×203×4.5 |
| 25 | 5 | 4 | 8.0 | 112×203×4.5 |
| 30 | 5 | 4 | 8.8 | 112×259×5.5 |
| 40 | 5 | 4 | 9.6 | 115×307×6.0 |
5. Optional Accessories of Our Tents for Outdoor Party/Event Tent:
1) Covers: colourful cover, transparent cover, inflatable roof cover
2) Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
3) Wooden Flooring System: VIP cassette flooring, simple cassette flooring
4) Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
5) Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
6) Fixing Methods: ground anchors, weight plate, expandable bolts
7) Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
8) Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
