Place of Origin:
Hebei, China
Brand Name:
JN
Certification:
CE ISO
Model Number:
Customize

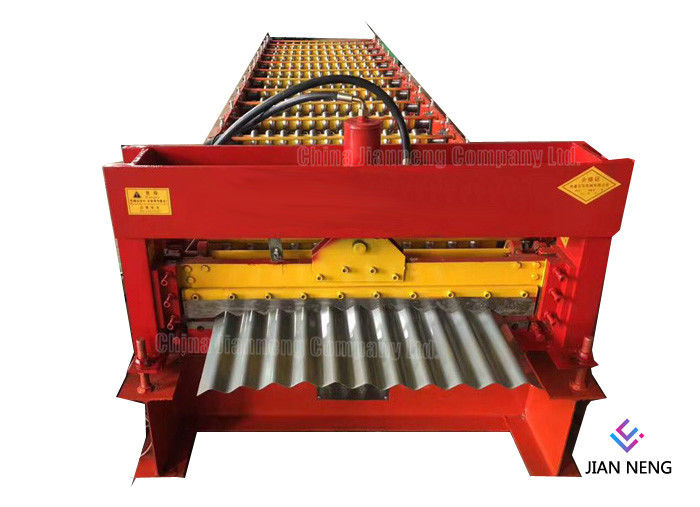

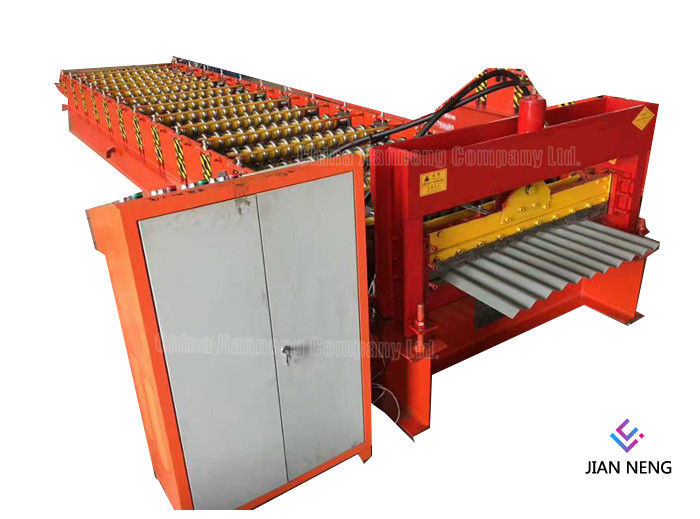

Hydraulic System Rolling Shutter Machine , Door Frame Roll Forming Machine
Description and Application:
Shutter door forming machine is to produce rolling doors of major equipment, the use of galvanized steel or different colors of color steel or aluminum as a raw material, production of color plate rolling gates brilliant color, do not fade, do not rust, fire cut off, easy deformation, strength 3 times higher than the aluminum door.
Rolling shutters have many applications, including doors for vans, garages, kitchens, schools, prisons and warehouses.
Main Material Used
1. Material: Color steel ,galvanized steel or Aluminum
2. Feeding width:300mm
3. Material thickness:0.8-1.5mm
4. Yield strength:235-450mpa
Technical Parameter:
|
Main Motor Power
|
7.5 kw
|
|
Hydraulic Station Powder
|
3 kw
|
|
Hydraulic Oil Pump
|
CE-310
|
|
Sprocket
|
P-25.4mm
|
|
Control System
|
PLC
|
|
Yield Strength
|
235-450Mpa
|
|
Diameter of Axis
|
80mm
|
|
Material Roller
|
#45 steel hard chrome plating
|
|
Processing speed
|
8-12m/min
|
|
Frame
|
30H steel welding
|
|
Roller plate thickness
|
0.3-1.5mm
|
|
Use
|
The machine used to produce all kinds of house, supermarket , garage,etc
|
|
Equipment parts
|
Decolier, main roll forming machine, hydraulic cutter, hydraulic station, PLC electric control system, counter, product supporter
|
