Place of Origin:
Hebei, China
Brand Name:
JN
Certification:
CE ISO
Model Number:
Customize

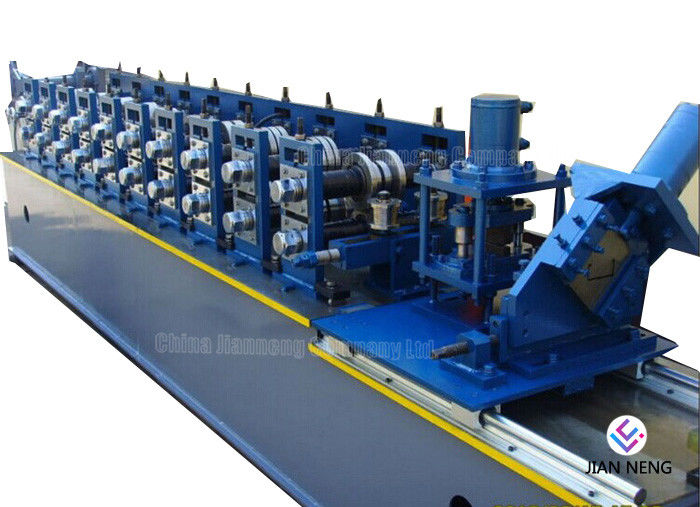

C Z Profile / Metal Steel Purlin Roll Forming Machine , Metal Shaping Machine
Description:
The finished product of C Z Profile / Metal Steel Purlin Roll Forming Machine , Metal Shaping Machine is widely used in the construction of various industrial plants, villages, warehouses,supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
Technical Parameter:
Name of Roll Forming Machine | C Z Profile / Metal Steel Purlin Roll Forming Machine , Metal Shaping Machine | |
1 | Suitable raw material | PPGI/PPGL/GI/GL Steel Coils |
2 | Thickness of coil sheet | 1-3mm |
3 | Punching device | round hole or elliptical hole |
4 | Effective width | 100-300mm |
5 | Under frame | 400H-beam |
6 | Diameter of Soil shaft | 80mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway |
7 | Roller |
Gcr15, processed by CNC lathe, Quenched and tempered treatment, hard chrome coated 0.05-0.07mm |
8 | Thickness of middle plate | 18mm |
9 | Forming stations | 15 |
10 | Drive type | By chain(1.5 inch) link bearing model 6212 |
11 | Power of main motor | 11kw with Cycloidal reducer |
12 | Power of pump station | 5.5kw |
13 | Forming speed | About 15-20m/min |

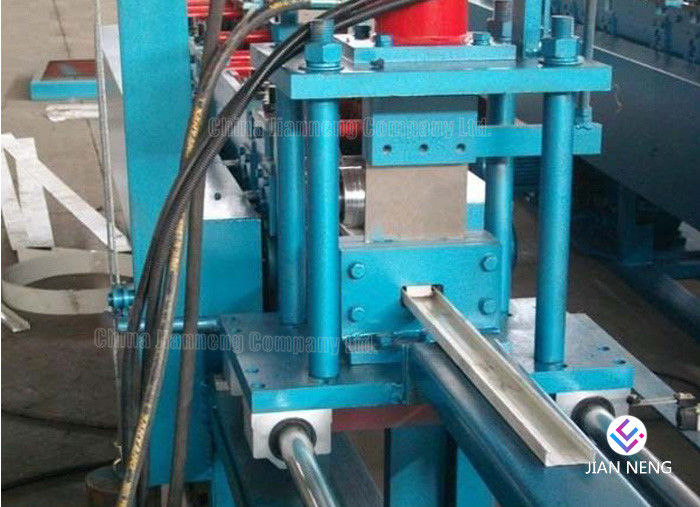

14 | Hydraulic cutting | Controlled by PLC |
15 | PLC | DELTA, TAIWAN / Mitsubishi, Japan |
16 | Material of cutting blade | Cr12Mov, quenching 58-62℃ |
17 | Frequency converter |
It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrial standard ±3mm). |
18 | Switch | CHNT |
19 | Transducer | SAJ |
Packaging Detail of stud and track roll forming machine :
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
How to choose the machine suitable for you: |
1. What is the exact profile you want to produce? 2. What kind of material you will use, such as steel or aluminium, max coil weight, thickness? 3. What kind of decoiler and stacker you need? Tell me those data, we can help you choose the suitable machine for you. |
Welcome to contact us for more information , we will do my best for our friends. |
