Box Type Ladders And Scaffold Towers , Lightweight Scaffold Tower With Satety Protecting Netting

Box Type Ladders And Scaffold Towers , Lightweight Scaffold Tower With Satety Protecting Netting

lightweight scaffold tower

building scaffold tower

Place of Origin:

Hebei, China

Brand Name:

JN

Certification:

CE ISO

Model Number:

Construction Scaffold Stair Tower

Contact Us
Request A Quote
Product Details
Material:
Q235 Steel
Size:
2.5m *1.2m
Height/Piece:
3m
Diameter Of Main Materials:
Φ48mm
Model Avaiable:
50, 75, 100
Working Height:
100m (standard)
Type:
Box / Closed Type With Satety Protecting Netting
Application:
Highways Subways Bridges Tunnels Construction
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Standard export package or as requested
Delivery Time
within 7 days
Payment Terms
T/T, Western Union, L/C
Supply Ability
5000m per month
Product Description

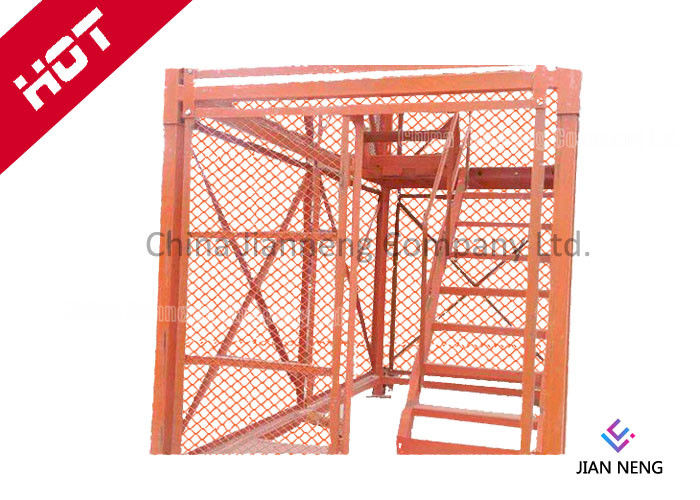

Box Type Φ 48mm Diameter Construction Scaffold Stair Tower With Satety Protecting Netting





Brief Introduction :



The box / closed type construction scaffold stair tower ladder cage is composed of a ladder rack of several bottom-up connected climbing units and fixed components connected between the ladder rack and the building structure. Each frame is equipped with a full pedestrian ladder and handrails, to meet the free and safe walking up and down, walking pedal.



The entrance section is provided with a safety door for easy access and access.It can adjust the height of ladder cage by itself according to the construction schedule. It is the first choice for the construction of subway, road bridge high pier and building foundation pit. Become the first choice of construction enterprise advanced customers.



Technical Parameter of Construction Scaffold Stair Tower With Ladder:



1. Material: Q235

2. Diameter of main materials : 48mm

3. Size: 2500mm*1200mm*3000mm

4. Thickness of vertical tube : 3.25mm

5. Thickness of horizontal tube: 2.2mm

6. Thickness of oblique tube: 1.5mm

7. Height each piece: 3000mm





Feature:



1. The design is more simple and reasonable;
2. The structure is more stable ;
3. The force is stronger;
4. It can help you save material, install and disassemble quickly, save much time & labor;
5. Safety, reliability and easy operation.



The main components of safety climbing scaffold are vertical bar, cross bar and inclined bar.



Application:



The Scaffolding Stair Access Towers is widely used in construction of houses, Bridges, overpasses, tunnels, culverts, chimneys, water towers, DAMS and large-span scaffolds.
