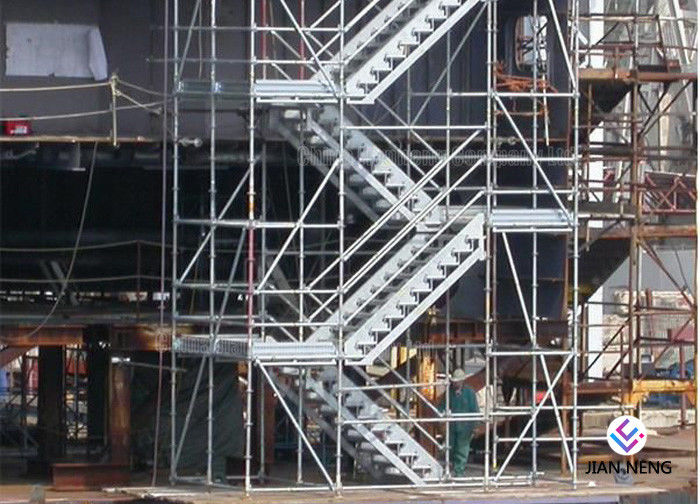

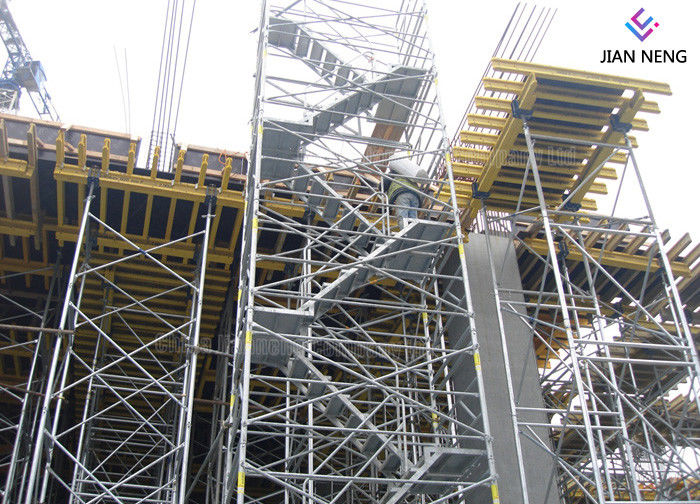

Hot Dip Galvanized Kwikstage / K - Stage Cuplock Stair Tower With Safety Ladder

Hot Dip Galvanized Kwikstage / K-stage Scaffolding Stair Towers With Safety Ladder

Description and Application:

Kwikstage / K-stage Stair towers are a necessity when safe and quick temporary access is needed.

The main components are vertical bar, cross bar, inclined bar, horizontal support, ladder, pedal, external support, protective bracket, etc.

It is widely used in construction of houses, Bridges, overpasses, tunnels, culverts, chimneys, water towers, DAMS and large-span scaffolds.

Technical Parameter:

1. Material: Q235

2. Thickness of vertical tube : 3.25mm

3. Thickness of horizontal tube: 2.2mm

4. Thickness of oblique tube: 1.5mm

5. Height each piece: 3000mm

6. Length each piece: 2500mm

7. Width each piece: 1200mm

8. Weight of each piece : 75KG

Features of Kwikstage / K-stage Scaffolding Stair Towers With Safety Ladder:

1. Multiple functions: according to specific construction requirements, construction equipment with multiple functions can be composed of single-row, double-row scaffolds, support racks, support columns and material lifting racks of various sizes and loads.

2. Strong bearing capacity: the stamping pin has reliable axial shear strength, large contact surface between horizontal bar and vertical bar, and strong overall stability.

3. Safe and reliable: independent bolt interpenetration and self-locking structure is adopted.

4. Easy installation: when installing, just point the banana head of the cross bar to the position of the pin store, and then put the pin into the pin store by hand, and then hit the top of the bolt with the hand hammer, so that the cross bar plug is closely connected with the vertical bar.

5. Good comprehensive benefits: standardized component series, easy to transport and manage, free of loose components, low loss and less investment in the later stage.

Note: the vertical bar is provided with a node every 75CM, and each vertical bar node is provided with a protective cross bar;Each layer is equipped with corresponding protective inclined bar;Each staircase is equipped with internal handrails;Safer and more secure.
