Sidewall Cleated Truck Loading Belt Conveyor , Portable Truck Loading Conveyor For Materials Conveying

Sidewall Cleated Truck Loading Belt Conveyor , Portable Truck Loading Conveyor For Materials Conveying

portable conveyor systems

portable belt conveyor systems

Place of Origin:

Hebei, China

Brand Name:

JN

Certification:

CE ISO

Model Number:

Customize

Contact Us
Request A Quote
Product Details
Belt Width:
500/550/650/800/1000mm
Surface:
Flat And Pattern
Material:
Rubber
Material Feature:
Heat Resistant
Type:
Inclined Belt Conveyor
Voltage:
220/380/415V/440V
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Usually wooden case for small size, Container for big size.
Delivery Time
within 20 days
Payment Terms
T/T, Western Union, L/C
Supply Ability
200 sets per month
Product Description

Inclined Corrugated Sidewall Cleated Belt Conveyor for Steep Inclination Angle Materials Conveying





Description of Corrugated Sidewall Cleated Belt Conveyor :



Cleated Conveyor Belt be used for horizontal,sloping or vertical conveyance,it is one of the most effective ways of elevating materials in confined space,the economy is achieved by single belt operation,wide range material can be handled,less space and requirement,no transfer points,low maintenance and big capacity.





Application of Corrugated Sidewall Cleated Belt Conveyor:



1. Coal and wood-chip fired power stations

2. Underground mining (coal and ore)

3. Shaft conveying for tunnelling and underground mining

4. Steel industry

5. Ship loading and unloading, ship to ship loading

6. Sand preparation in foundry plants

7. Silo feeding

8. Slope conveying in openpit mining

9. Waste recycling, soil purification and water treatment

10.Handling of large material flows in the horizontal path



Specification - Techincal Parameter :



Belt Width

(mm)

Sidewall Height (mm) Conveyor Quantity at certain angles Q(m3/h)
30° 45° 60° 90°
500 120 55 36 25 11
120 96 63 43 19
650 160 119 83 58 25
160 156 109 76 33
800 200 190 137 97 43
240 247 189 140 63
1000 200 266 191 134 75
240 347 267 197 101
1200 240 400 308 228 122
300 491 379 285 167
1400 300 611 473 355 159
400 771 590 435 195





Featured Advantages:



1.low maintenance cost.

2.Large transport capacity, and it can avoid material spilling effetely.

3.The belt can facilitate switching from horizontal to inclined conveying and from inclined to horizontal conveying.

4.It saves a lot space as it allows material conveying at 0-90 degree.

5.The sidewall belt conveyor is widely used in coal, food, building, chemical, water and electricity and metallurgy industry.





We can choose the most suitable the machine according to customer requirements.



1. What is the conveying material and its physical characteristics? such as bulk density, feeding size, temperature, mositure content etc.
2. What is the processing capacity of the conveyor?
3. What is the inclination angle of the conveyor?
4. What is the lifting height (distance between inlet and outlet)?
5. What is the length of horizontal section?

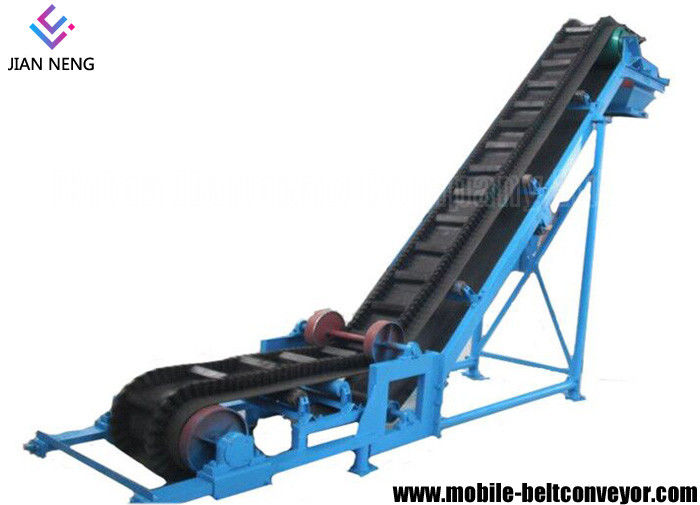

Sidewall Cleated Truck Loading Belt Conveyor , Portable Truck Loading Conveyor For Materials Conveying 0

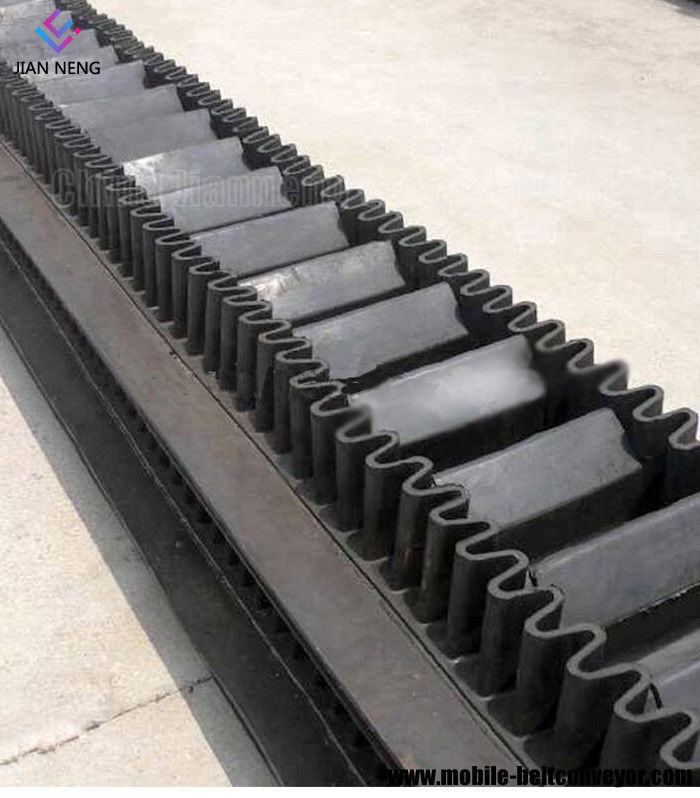

Sidewall Cleated Truck Loading Belt Conveyor , Portable Truck Loading Conveyor For Materials Conveying 1
