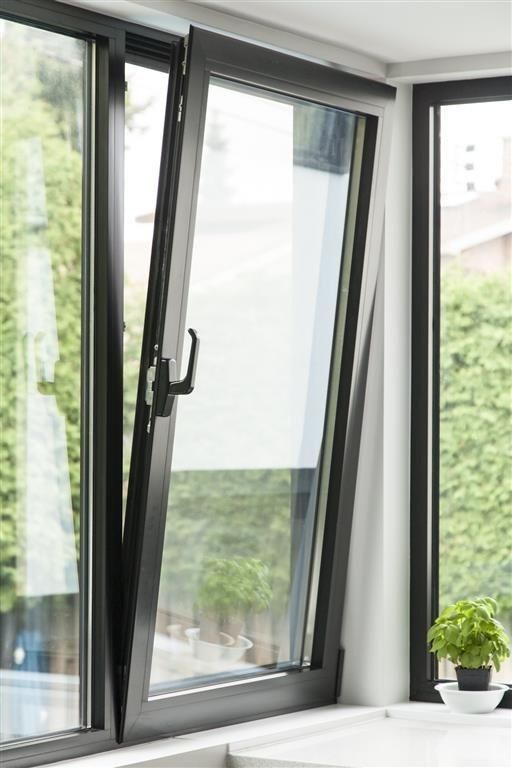

Thermal Break Aluminum Tilt & Turn Window With Tempered Glass
1. Products characters of Aluminum Casement Window And Door:
||Aluminum Design Windows For Homes, Aluminum Window Manufacturers
||40 series aluminum casement window
||Heat & Sound insulation
A. Aluminum alloy, 6063-T5, can be thermal break
B. Wall thickness: 1.2, 1.4, 1.6, 2.0mm, can be customized
C. Surface treatment: anodized, electrophoresis, powder coated, color can be
A. Single glass: 5,6,7,8,10,12,15,19mm Tempered Glass
B. Double glazing: 5+ 6/9/12 +5mm Tempered Glass
C. Laminated glass: 5+ 0.38/0.76/1.52PVB+5mm Tempered Glass
D. Tinted/Reflect Glass/Tempered Glass
||A. Made in China
B. Made in Germany
||A. Stainless steel security mesh
B. Aluminum security mesh
C. Fiberglass fly screen
D. Retractable & invisible fly screen
2. How can I konw the price exactly?
The price is based on your specific requiremeny, it is better to provide the following information to help us quote exact price to you.
(1) Official drawing of windows&doors to show us the dimensions, quantity and types;
(2) The color the frame and also the thickness of the profile you would like to choose;
(3) Type of the glass: single or double glass, laminated or Low-E glass, others;
(4) Any other your personal requirements is also needed.
1. Bundles Packing
--Inside: Packed with plastic protective film to protect each piece .
--Outside: Warp to be bundles by waterproof craft paper or EPE film.
2. Carton Packing
--Inside: Each pcs pack in one plastic.
--Outside: Numbers of quantity put in one carton.
3. Wood Pallet Packing
--Inside: Bundles or Cartons Packing.
--Outside: Numbers of bundles or cartons laden on one wood pallet.
4. Customized Packing Request Available
The tilt-turn window, originating in Europe and popularized by passive-house and net-zero construction, is a window type with the unique characteristic of being both an inward-swing casement style window as well as a top opening hopper style window. The clever hinge and intuitive handle mechanism is specially designed to allow seamless switching between the modes via the orientation of the handle. Depending on the handle position, it can operate as a fixed window (handle in the 6 o'clock position), inward casement window (handle in the 9 o'clock position) or hopper window (handle in the 12 o'clock position). This window style combines the security, air-tightness, egress requirements and ease of cleaning of an inswing casement with the all-weather ventilation convenience of a hopper.
This product represents the latest evolution of our tilt-turn window featuring a solid oak frame and sash and exterior aluminum cladding. Solid wood is the preferred choice for windows due to its low thermal conductivity, strength to weight ratio, ease of finishing and appearance. Wood window can last generations, as evidenced by the many historic homes all over the world. That said, wood windows do require regular maintenance and can be susceptible to pests such as termites. Our wood treatment process produces a more durable wood that our internal testing has shown can withstand unprotected, direct exposure to the elements for 10-15 years before failure and can last a lifetime if properly maintained. However, for those that desire the ultimate in window technology, our top of the line wood windows feature exterior aluminum cladding alleviating all concerns with wood and the concomitant design considerations to mitigate them.
Competitive with the best in the industry, Doorwin Tilt-turn windows feature 4 sealing layers; a continuous rubber seal around the sash and three inner seals. Along with our pressure-equalized cavity drainage design, this product ensures outstanding performance even under the harshest weather.
