SC200 Single Cage And Double Cages Construction Passenger Hoist 3×11KW Power
We can offer the construction elevator with single cage, double cage of 1-ton lifting capacity and 2-ton lifting capacity at present. The types are as follows: SC100 (1-ton lifting capacity each cage), SC200 (2-ton lifting capacity each cage), SC100/100 (1-ton lifting capacity each cage), SC200/200 (2-ton lifting capacity each cage).
The construction elevator we offered is with safety device ,And our elevator also with other safety devices such as reliable safety interlock-devices, safety switch, and breakage protection switch, upper and lower limits and limit switches, etc. Progressive dropping protection device and safety protection hook are provided. The safety design and configuration fully comply with national standards.
A. Main Technical Parameters of Construction Passenger Hoist
Model: SC100 SC100/100 SC200 SC200/200
Reated Capacity: 1000kg/2000kg
Lifting Speed: 36 m/min
Motor Power: 2*11 kw/3*11kw
Inside Cage Size: 3*1.3*2.15m
Standard Section Height: 1.508m
B. Features of construction elevator
1. All machines sold must be tested before shipment, 100% quality.
2. With CE certification.
3. 7*24 hours technical support by email, telephone or video online.
4. User-friendly English manual for machine using and maintain.
5. Spare parts will be offered for free.
6. Professional design drawing can be designed and provided according to customer installation site.
C.Main Performance Parameter
| Item | Unit | SC100 | SC100/100 | SC200 | SC200/200 |
| Rated loading capacity | Kg | 1000 | 2×1000 | 2000 | 2×2000 |
| Passenger number | Person | 12 | 2×12 | 16 | 2×16 |
| Rating rising rate | M/min | 36 | 36 | 36 | 36 |
| Max. lifting height | M | 200 | 200 | 200 | 200 |
| Motor power | KW | 2×11 | 2×2×11 | 3×11 | 2×3×11 |
| Cage size | M | 3*1.3*2.3 | 3*1.3*2.3 | 3*1.5*2.3 | 3*1.5*2.3 |

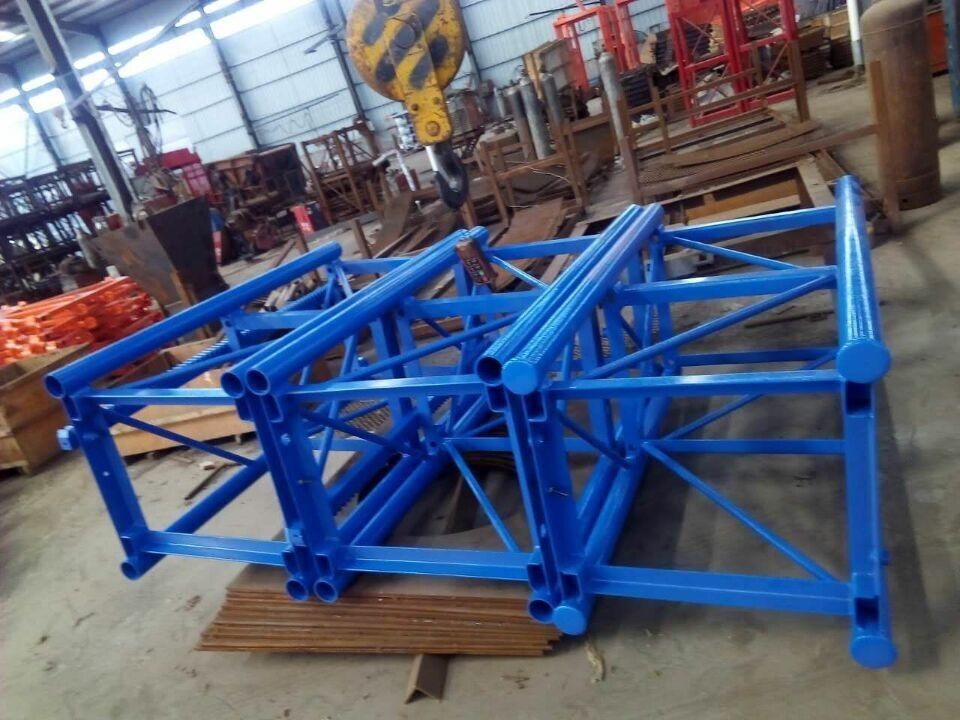

| Mast section dimension | M |
0.65×0.65
×1.508 |
0.65×0.65
×1.508 |
0.65×0.65
×1.508 |
0.65×0.65
×1.508 |
| Steeve rating rising weight | Kg | 200 | 200 | 200 | 200 |
| Main material | Steel Q345B | ||||
| Surface treatment | Painted or Hot galvanized | ||||
| Color | Red/yellow/blue etc. It can be OEM. | ||||
