Safe And Reliable Construction Stair Tower , Vertical Building Scaffold Tower

Safe And Reliable Construction Stair Tower , Vertical Building Scaffold Tower

lightweight scaffold tower

building scaffold tower

Place of Origin:

Hebei, China

Brand Name:

JN

Certification:

CE ISO

Model Number:

Construction Scaffold Stair Tower

Contact Us
Request A Quote
Product Details
Material:
Q235 Steel
Cross Section Size:
2.5m *1.2m
Thickness Of Horizontal Tube:
2.2mm
Thickness Of Vertical Tube:
3.25mm
Surface Treatment:
Spray Painted, Hot Dip Galvanized
Application:
Construction, Rehabilitation, Or Industrial Project
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Standard export package or as requested
Delivery Time
within 7 days
Payment Terms
T/T, Western Union, L/C
Supply Ability
5000m per month
Product Description

Safe And Reliable Steel Q235 Kwikstage / K-stage Scaffolding Stair Towers





Brif Introduction :



Kwikstage / K-stage Stair towers are a necessity when safe and quick temporary access is needed.



Main Compomenents:



The main components are vertical bar, cross bar, inclined bar, horizontal support, ladder, pedal, external support, protective bracket, etc.



Application:



It is widely used in construction of houses, Bridges, overpasses, tunnels, culverts, chimneys, water towers, DAMS and large-span scaffolds.



Technical Parameter:



Material Q235
Thickness of vertical tube (mm) 3.25
Thickness of horizontal tube (mm) 2.2
Thickness of oblique tube (mm) 1.5
Height each piece 3
Length each piece 2.5
Width each piece 1.2
Weight of each piece (KG) 75



Features of Kwikstage / K-stage Scaffolding Stair Towers With Safety Ladder:



1. Multiple functions: according to specific construction requirements, construction equipment with multiple functions can be composed of single-row, double-row scaffolds, support racks, support columns and material lifting racks of various sizes and loads.



2. Strong bearing capacity: the stamping pin has reliable axial shear strength, large contact surface between horizontal bar and vertical bar, and strong overall stability.



3. Safe and reliable: independent bolt interpenetration and self-locking structure is adopted.



4. Easy installation: when installing, just point the banana head of the cross bar to the position of the pin store, and then put the pin into the pin store by hand, and then hit the top of the bolt with the hand hammer, so that the cross bar plug is closely connected with the vertical bar.



5. Good comprehensive benefits: standardized component series, easy to transport and manage, free of loose components, low loss and less investment in the later stage.



Note: the vertical bar is provided with a node every 75CM, and each vertical bar node is provided with a protective cross bar;Each layer is equipped with corresponding protective inclined bar;Each staircase is equipped with internal handrails;Safer and more secure.

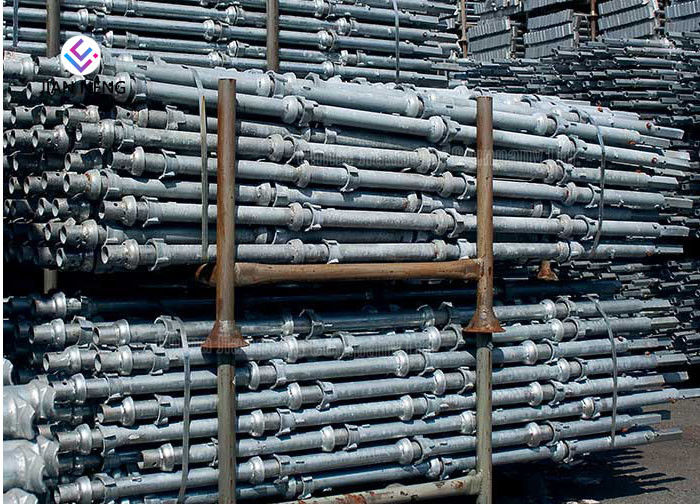

Safe And Reliable Construction Stair Tower , Vertical Building Scaffold Tower 0
