Place of Origin:
Hebei, China
Brand Name:
JN
Certification:
CE ISO
Model Number:
Customize

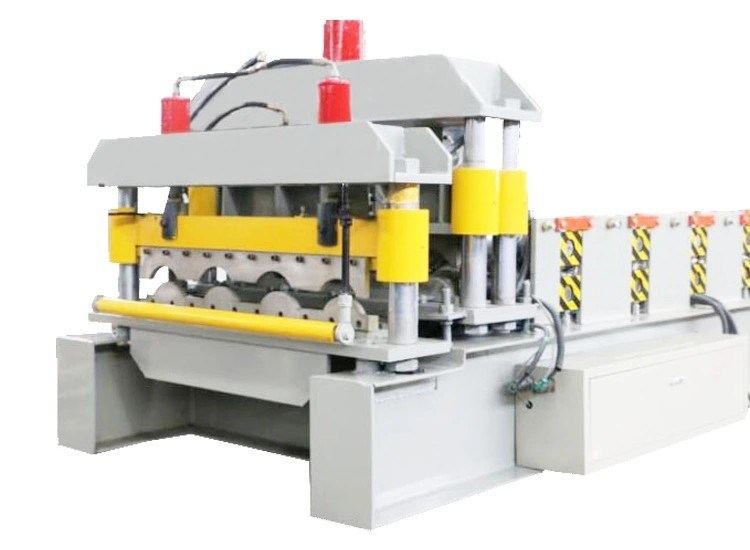

Q Tile Roll Forming Machine / Tile Roll Forming Machine For 850 Width Tiles
Description:
1.Ø75 mm shaf,HRC 60-62℃
2.T18 mm board connect wall
3. H300 mm steel frame
4.China famous PLC with color screen
5. Manual decoiler and received table
Specification / Technical Parameter:
| Material | |
| Thickness | 0.3-0.6mm |
| Feeding width | 1000mm/1220mm |
| Applicable material | GI/PPGI/AL |
| Manual Un-coiler | |
| Max Capacity | 3-5Ton |
| Features | Manual with brake |
| Main Forming System | |
| Motor Power | 3KW forming system |
| Roller material | 45# steel , precision machined, mirror treatment, coatd with rigid chrom |
| Main forming shaft | Φ70mm, 45# tempering steel |
| Frame | 300H steel plate welding |
| Forming station | 16 stations |
| Transmission | by chain-and-gear |
| Measuring accuracy | +/- 2 mm/M |
| Producing speed | 8-12m/min |
| Working procedure | decoilering--forming--moulding--cutting--product finished |
| Hydraulic Cutting Device | |
| Cutting way | Post cut, stop to cutting |
| Cutting material | Cr12 with harded quenched and tempered, two piece of cutting blades |
| Motor power of Oil pump station | 3KW |
| Electrical System | |
| Control system | PLC controller(import brand) |
| Power | 380V 50Hz (as per local requirement) |
| Extra | |
| Dimesion(L*W*H) | 7500mm*1300mm*950mm |
| Weight(Ton) | 4T |
| Service | |
| After-sales Service | Engineers available to service machinery overseas |
| Warranty | 12 month |
Feature & Advantages of Q Tile Metal Roof Machine / Roll Forming Machine:
1. Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.
2. Considerate service: we provide the technical support for whole life of our machines.
3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4. Easy operation:All machine cotrolling by PLC computer controlling systerm.
5. Elegant apperance:Protect the machine from rust and the painted colour can be customized
6. Reasonable price:We offer the best price in our industry.
