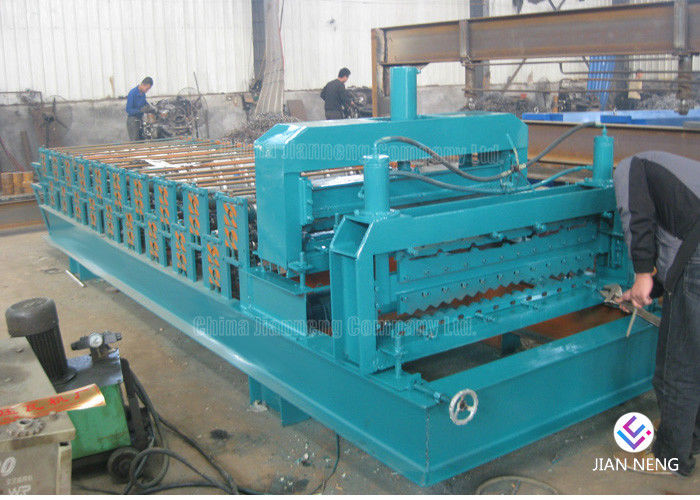

Prepainted Steel & Aluminium Metal Roofing Roll Forming Machine Cutting Machine
Description :
1. Roof tile roll forming machine is made up of roll forming machine, molding press, cutting machine, PLC computer control and hydraulic system.
2. The machine is stable, no noise, no shake.
3. Controlling by computer, PLC display, operation is easy, running is steady and reliable, endurable, maintenance-free.
4. Cutting machine is characterized by stable driving, easy operation.
5. Hydraulic system use the CDF-10 hydraulic pump, long operating life, no noise.
Specification / Technical Parameter
Name | Prepainted Steel & Aluminium Metal Roofing Roll Forming Machine Cutting Machine |
Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent |
Thickness Range | 0.3-0.8 mm |
Coil Width Range | According to your actual drawing. |
Electric Power |
380V, 50 Hz, 3 phaseor according to your need. |
Dimension | About 6.4*0.6*1.1m(L*W*H), as per the drawing |
Cutting | Automatically stop and cutting when it comes to the set length. |
Length of the Sheet |
You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm. |
Components of Metal Roofing Machine / Curving Machine
1. Manual De-coiler or Hydraulic De-coiler 5t (optional)
2. Feeding device
3. Straightenting device
4. Roll Forming Machine

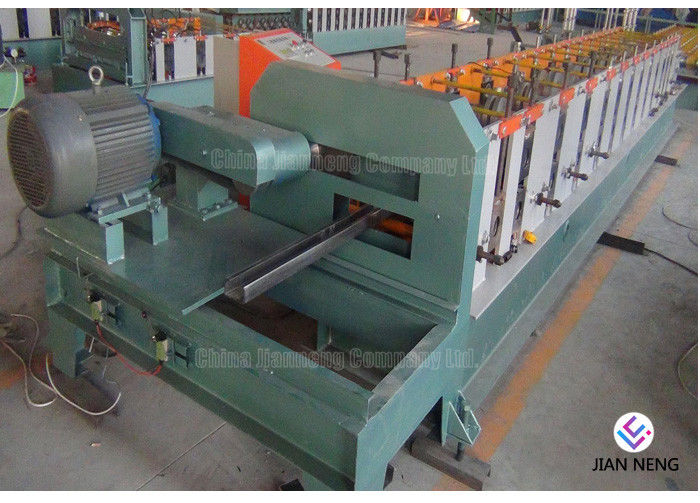

5. Cutting device
6. PLC control system
7. Exit Rack
8. Hydraulic Station
Feature & Advantages:
Prepainted Steel & Aluminium Metal Roofing Roll Forming Machine Cutting Machine

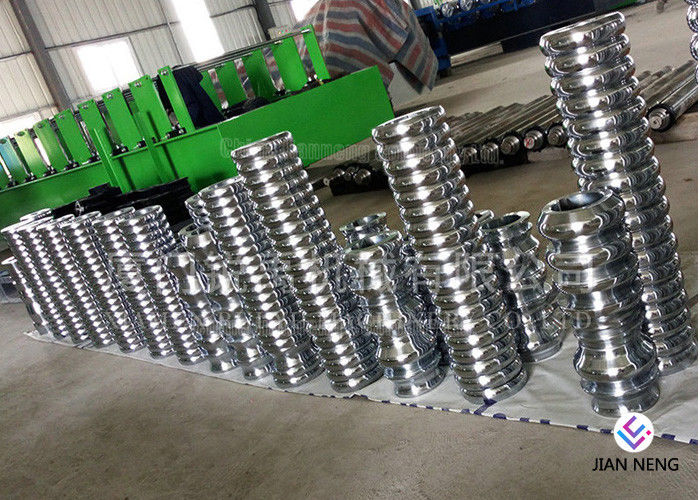

1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

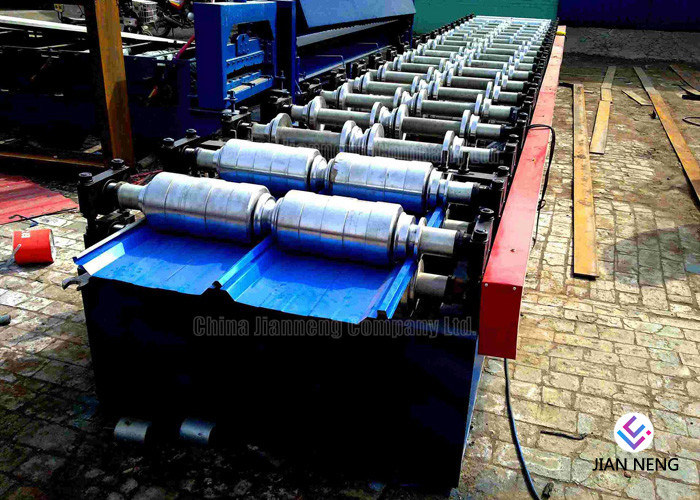

4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5. Automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. Powerful driving system: big inch train,or gear box driving system.
7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
