Place of Origin:
Hebei, China
Brand Name:
JN
Certification:
CE ISO
Model Number:
Construction Scaffold Stair Tower

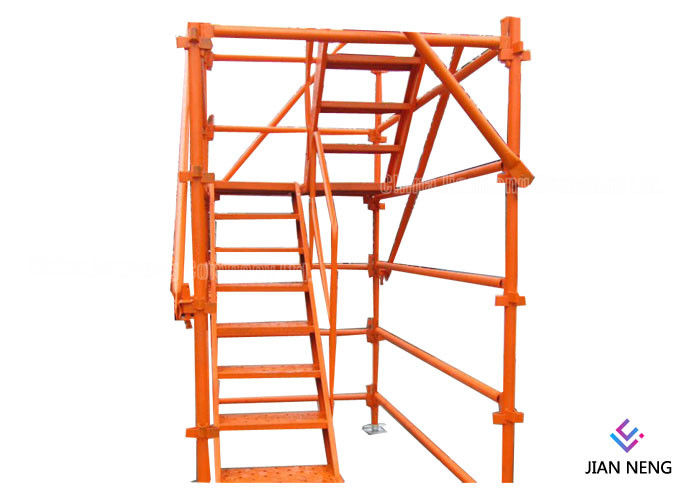

Multi-functional Convenient Scaffolding Stair Towers With Strong Bearing Capacity
Description and Application:
The construction scaffold stair tower has high strength, good overall stability, suitable width. So workers can freely stagger up and down and it is also very convenient to carry tools . It can better meet all kinds of safety construction needs.
It is widely used in construction of houses, Bridges, overpasses, tunnels, culverts, chimneys, water towers, DAMS , large-span scaffolds and many other projects.
Technical Parameter:
1. Material: Q235
2. Thickness of vertical tube : 3.25mm
3. Thickness of horizontal tube: 2.2mm
4. Thickness of oblique tube: 1.5mm
5. Height each piece: 3000mm
6. Length each piece: 2500mm
7. Width each piece: 1200mm
8. Weight of each piece : 75KG
Main Components:
Vertical tube, horizontal tube, oblique tube, stair, handrail, base, screw and other supporting components
Features of Construction Scaffold Stair Tower:
1. Strong bearing capacity: the overall structure adopts a frame-type composite structure. The high-strength bolts are connected up and down with reliable anti-damping force.
2. Safety and reliability: the new type of compound ladder cage is completely enclosed, which can prevent falling and climbing accidents.
3. Simple and quick installation: all the components of this product are standard common standard parts, which shall be installed according to the installation instructions of our company.
4. Good comprehensive benefits: standardized component series, easy to transport and manage, low loss, high reuse rate and long service life.
