Place of Origin:
Hebei, China
Brand Name:
JN
Certification:
CE, ISO
Model Number:
SC Series
Low Noise Rack And Pinion Construction Hoist Elevator 40m/min Frequency
A. Main Technical Parameters of Rack Pinion Elevator
Model: SC100 SC100/100 SC200 SC200/200
Reated Capacity: 1000kg/2000kg
Lifting Speed: 36 m/min

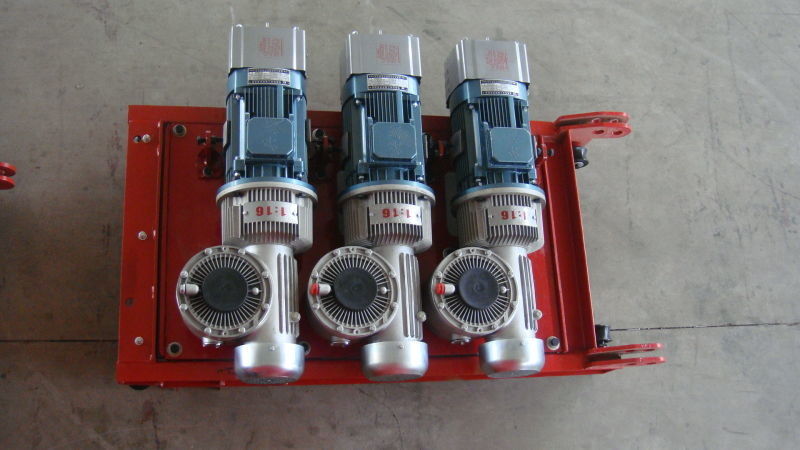

Motor Power: 2*11 kw/3*11kw

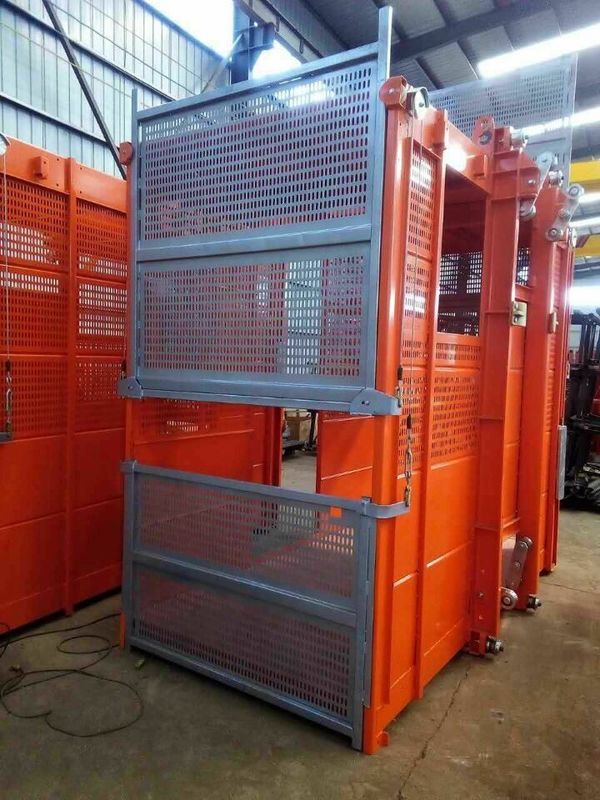

Inside Cage Size: 3*1.3*2.15m
Standard Section Height: 1.508m
B. Features of construction rack pinion hoist
1. All machines sold must be tested before shipment, 100% quality.
2. With CE certification.
3. 7*24 hours technical support by email, telephone or video online.
4. User-friendly English manual for machine using and maintain.
5. Spare parts will be offered for free.
6. Professional design drawing can be designed and provided according to customer installation site.
C.Main Performance Parameter
| Item | Unit | SC100 | SC100/100 | SC200 | SC200/200 |
| Rated loading capacity | Kg | 1000 | 2×1000 | 2000 | 2×2000 |
| Passenger number | Person | 12 | 2×12 | 16 | 2×16 |
| Rating rising rate | M/min | 36 | 36 | 36 | 36 |
| Max. lifting height | M | 200 | 200 | 200 | 200 |
| Motor power | KW | 2×11 | 2×2×11 | 3×11 | 2×3×11 |
| Cage size | M | 3*1.3*2.3 | 3*1.3*2.3 | 3*1.5*2.3 | 3*1.5*2.3 |
| Mast section dimension | M |
0.65×0.65
×1.508 |
0.65×0.65
×1.508 |
0.65×0.65
×1.508 |
0.65×0.65
×1.508 |
| Steeve rating rising weight | Kg | 200 | 200 | 200 | 200 |
| Main material | Steel Q345B | ||||
| Surface treatment | Painted or Hot galvanized | ||||
| Color | Red/yellow/blue etc. It can be OEM. | ||||
