Place of Origin:
Hebei, China
Brand Name:
JN
Certification:
CE ISO
Model Number:
Customize
Hydraulic Powered Metal Roofing Roll Forming Machine Thickness 0.4 - 0.7mm
Description :
Roof curving crimping machine Steel Crimping Machine Curved Roofing Sheet Machine hydraulic curving machine roof curving machine is also the nickname of the following name.
This machine is used to form the pre-painted sheet/GI material to be the standing seam for various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.
Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding
Work Flowing:
Decoiler --- Fedding Guide --- Film Covering --- Roll Forming --- Pressing --- Cut-to-length --- Run out table
Specification / Technical Parameter
Item | Specification | |
Material |
Type | Pre-painted steel coil & galvanized coils |
Thickness | 0.3-0.7mm | |
Yield strength | 235-345Mpa | |
Roller material | No.45 forged steel | |
Forming speed | About 20-25m/min | |
Output speed | 8-12m/min | |
Speed adjusting mode | AC Frequency | |

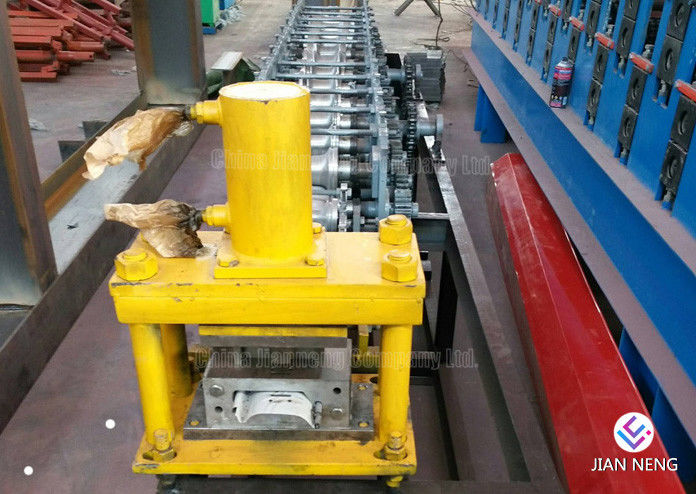

Cutting mode | Hydraulic cutting | |
Cutter material | Cr12 mould steel | |
Length measurement | Encoder | |
Control mode | Mitsubishi PLC | |
Main motor | 7.5KW | |
Hydraulic station motor | 2.2KW |
Components of Roofing Machine
Decoiler (manual/ hydraulic decoiler for option) |
1set | |
Feeding & guiding device | 1set | |

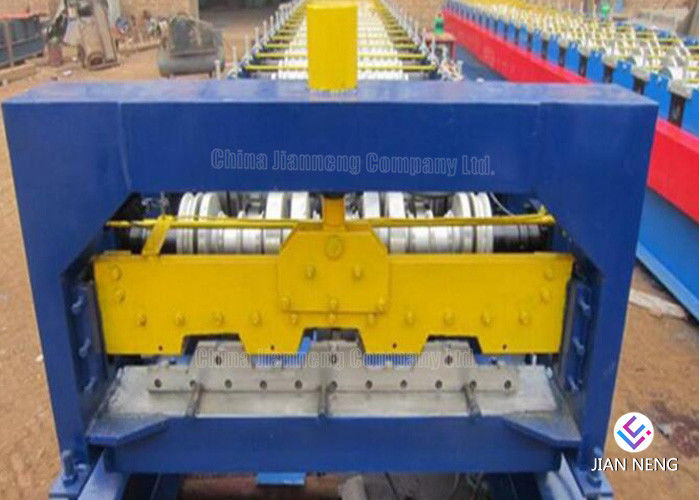

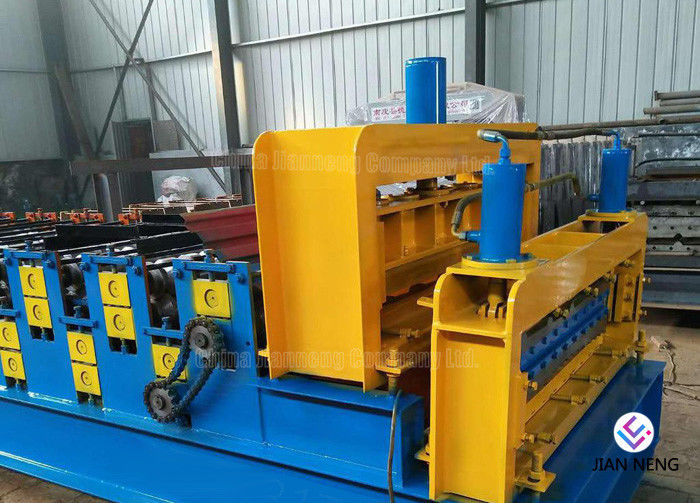

Main roll forming machine | 1set | |
Hydraulic cutting system | 1set | |
Controlling system | 1set | |
Run out table (auto. Stacker for option) |
1.5m/ pc, 2 pcs |
Feature & Advantages:
Hydraulic Powered Metal Roofing Roll Forming Machine Thickness 0.4 - 0.7mm
1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. powerful driving system: big inch train,or gear box driving system.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
