Place of Origin:
Hebei, China
Brand Name:
JN
Certification:
CE ISO
Model Number:
Customize
Automatic Metal Roofing Roll Forming Machine , Roof Cold Roll Forming Machine
Description :
1. Roof roll forming machine is made up of roll forming machine, molding press, cutting machine, PLC computer control and hydraulic system.
2. The machine is stable, no noise, no shake.
3. Controlling by computer, PLC display, operation is easy, running is steady and reliable, endurable, maintenance-free.
4. Cutting machine is characterized by stable driving, easy operation.
5. Hydraulic system use the CDF-10 hydraulic pump, long operating life, no noise.
Specification / Technical Parameter
| No. | Main parameter of Metal Roof Roll Forming Machine / Cold Roll Forming Machine | |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 1200mm |
| 3 | Rollers | 14 rows |
| 4 | Dimensions | 7100*1550*1510mm |
| 5 | Power | 4+4kw |
| 6 | Rolling material | 45# steel(plated chrome on surface) |
| 6 | Thickness of the plate | 0.3-0.6mm |
| 7 | Productivity | 8-10m/min |
| 8 | Diameter of the roller | Φ70mm |
| 9 | Voltage | 380V 50Hz 3phases |
| 10 | Material of the cutting plate | Cr12 |
| 11 | Hydraulic | 40# |
| 12 | Processing precision | Within 1.00mm |
| 13 | Control system | PLC control |
Components of Metal Roofing Machine / Curving Machine
1.Manual De-coiler or Hydraulic De-coiler 5t (optional)
2.Feeding device
3.Straightenting device

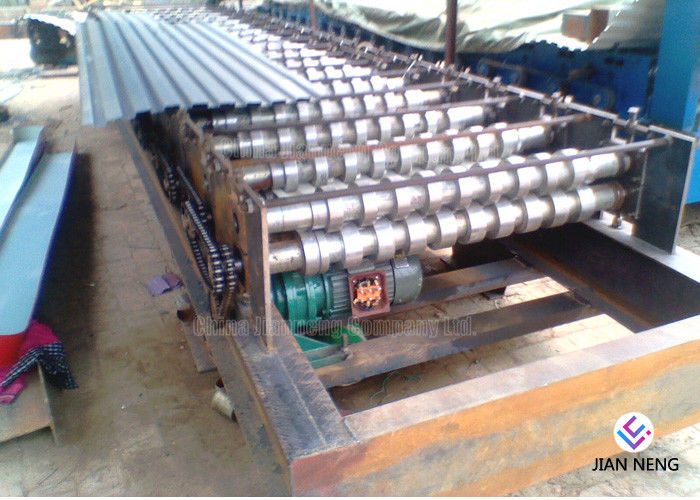

4.Roll Forming Machine

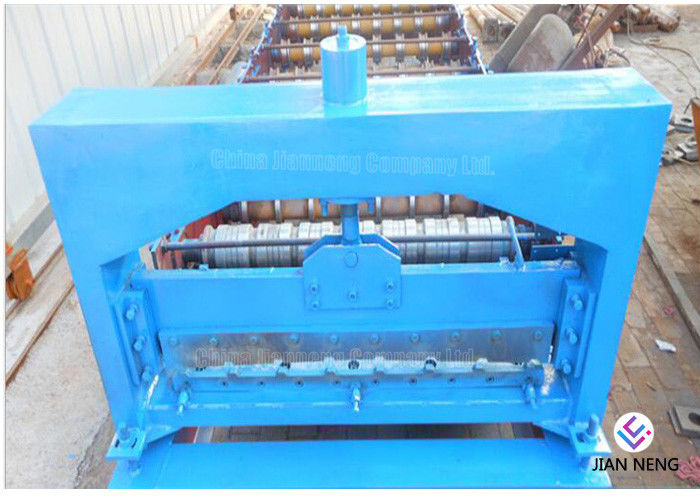

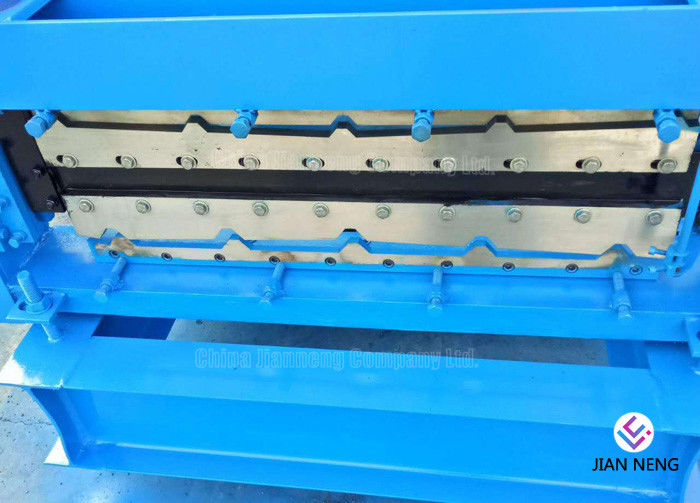

5.Cutting device
6.PLC control system
7.Exit Rack
8.Hydraulic Station
Work Follow:
Manual uncoiler-- Roll forming machine-- PLC control box-- Hydraulic system-- Post cut-- Output table
Feature & Advantages:
Automatic Metal Roofing Roll Forming Machine , Roof Cold Roll Forming Machine
1. Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2. Controlling by computer, PLC display, operation is easy, running is steady and reliable, endurable, maintenance-free.
3. We can make and design will kinds of roll forming machine according to customer's request.
