Place of Origin:
Hebei, China
Brand Name:
JN
Certification:
CE ISO
Model Number:
Customize

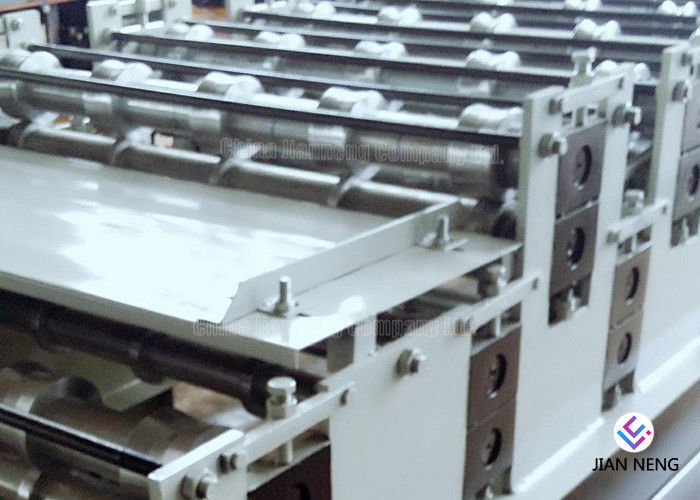

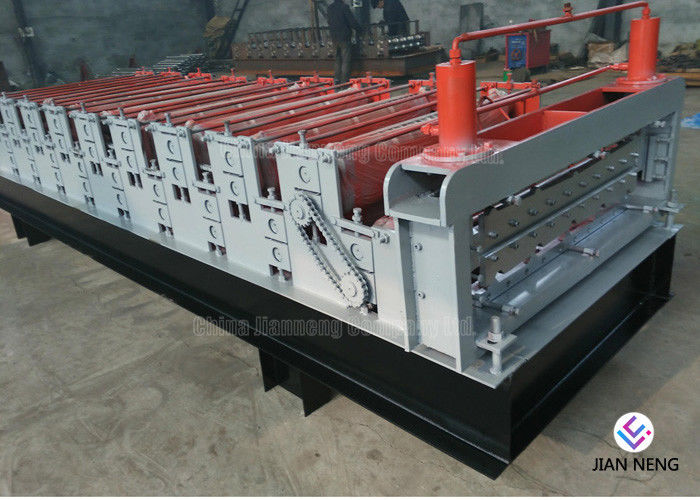

Color Metal Profile Roofing Sheet Roll Forming Machine With 3 Groups Rollers
Introduction:
1. Roofing Sheet Roll Forming Machine is made up of roll forming machine, molding press, cutting machine, PLC computer control and hydraulic system.
2. The machine is stable, no noise, no shake.
3. Controlling by computer, PLC display, operation is easy, running is steady and reliable, endurable, maintenance-free.
4. Cutting machine is characterized by stable driving, easy operation.
5. Hydraulic system use the CDF-10 hydraulic pump, long operating life, no noise.
Technical Parameter:
| Name | Color Metal Profile Roofing Sheet Roll Forming Machine With 3 Groups Rollers |
| Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent |
| Thickness Range | 0.3-0.8 mm |
| Coil Width Range | According to your actual drawing. |
| Electric Power |
380V, 50 Hz, 3 phase or according to your need. |
| Dimension | About 6.4*0.6*1.1m(L*W*H), as per the drawing |
| Cutting | Automatically stop and cutting when it comes to the set length. |
| Length of the Sheet |
You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm. |
Components of Color Metal Profile Roofing Sheet Roll Forming Machine With 3 Groups Rollers
| MACHINE LIST--WHOLE LINE | |||
| No. | Item | Unit | Qty |
| 1. | Manual decoiler | set | 1 |
| 2. | Main forming machine | set | 1 |
| 3. | PLC Control box | set | 1 |
| 4. | Hydraulic pump | set | 1 |
| 5. | Cutting system | pcs | 1 |
| 6. | Output table | pcs | 1 |
Feature & Advantages:
Color Metal Profile Roofing Sheet Roll Forming Machine With 3 Groups Rollers
1. Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.
2. Good service: we provide the technical support for whole life of our machines.
3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4. Easy operation:All machine cotrolling by PLC computer controlling systerm.
5. Elegant apperance:Protect the machine from rust and the painted colour can be customized
6. Reasonable price:We offer the best price in our industry.
