Place of Origin:
Hebei, China
Brand Name:
JN
Certification:
CE ISO
Model Number:
Customize

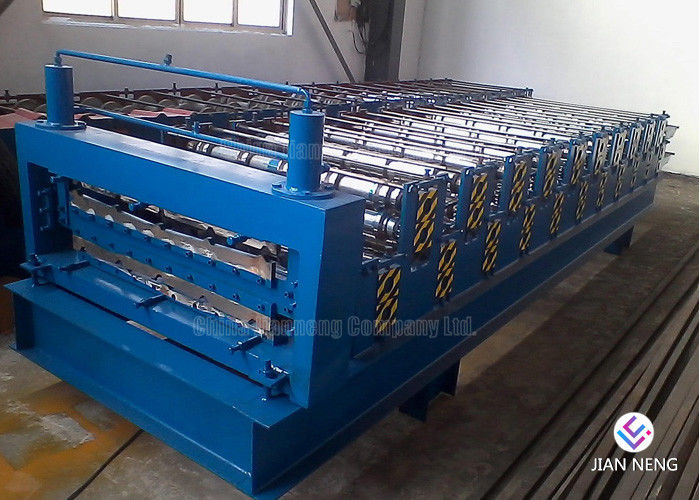

5 Ton Manual Decoiler Metal Roofing Roll Forming Machine Glazed Trapezoidal
Description and Application:
The roofing panel machines can produce various of steel roof and wall panel, it is a new building materials,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium,exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short buildi-ng period , beauty, light weight but high strength.
Specification / Technical Parameter
| Suitable material | color steel sheet;0.3-07mm, |
| Working speed | about10-25m/min |
| stress | 235MPa,345MPa,550MPa. |
| Power | Main motor power: 5.5 Kw(Depend on final design) |
| Hydraulic station power: 4Kw(Depend on final design) | |
| Material of forming rollers | No.45 steel, plated with chrome on surface. |
| Material of cutter,pressing die | Cr12 mould steel with quench treatment, HRC58-60 |
| Material of shaft | High quality 45# steel, Roller grinder milling. |
| Shaft diameter | 72mm |
| Controlling system | Mitsubishi PLC & converter |
| Total weight of machine | About 9500KGS |
| Machine’s size | about 18m×1.8m× 1.5m (Depend on final design) |
Components of Metal Roofing Sheet Roll Forming Machine / Curving Machine
| MACHINE LIST--WHOLE LINE | |||
| No. | Item | Unit | Qty |
| 1. | Manual decoiler | set | 1 |
| 2. | Main forming machine | set | 1 |
| 3. | PLC Control box | set | 1 |
| 4. | Hydraulic pump | set | 1 |
| 5. | Cutting system | pcs | 1 |
| 6. | Output table | pcs | 1 |
Feature & Advantages:
5 Ton Manual Decoiler Metal Roofing Roll Forming Machine Glazed Trapezoidal
1. Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.
2. Good service: we provide the technical support for whole life of our machines.
3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4. Easy operation:All machine cotrolling by PLC computer controlling systerm.
5. Elegant apperance:Protect the machine from rust and the painted colour can be customized
6. Reasonable price:We offer the best price in our industry.
