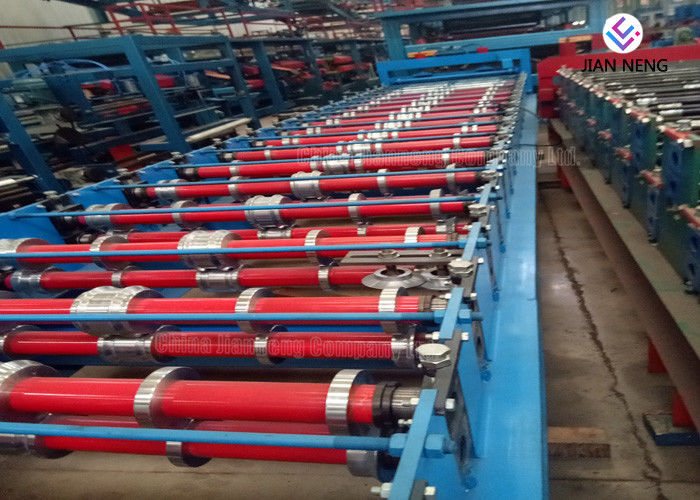

380V IBR Sheet Metal Roofing Machine PPGI Material Single / Double Layer Machine

380V IBR Sheet Metal Roofing Machine PPGI Material Single / Double Layer Machine

metal roof forming machine

metal roof roll forming machine

Place of Origin:

Hebei, China

Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Material Thickness:
Raw Material:
PPGI, PI, CR, Q235
Roof, Floor, Wall Ect.
Workers Needed:
2 Person
Electrical Control System:
Auto PLC
Working Time:
Can Be 24 Hours
Coil Width:
Custom-made, 1000/1200 /1250 Mm
Forming Stations:
13-22 Stations ( Depend On Profiles )
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Seaworthy Packing
Delivery Time
about 20 days
Payment Terms
T/T, Western Union, L/C
Supply Ability
50 Sets per month
Product Description

380V IBR Sheet Metal Roofing Machine PPGI Material Single / Double Layer Machine


Description & Application:


Construction,Store Fixture,Metal roof wall cladding, roof wall panel, Metal Roof sheet, trapezoidal roof metal, trapezoidal roofing, trapezoidal panel,corrugated roofing, corrugated panel,metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding,wall panel


Specification / Technical Parameter:


Product Name metal ibr tile roofing panel cold roll forming machine
Frame Structure Steel Plate Welded Manual
Roller Flatting System let the feeding fluently
Installation Dimension 11500mm*1500mm*1500mm
Machine Under Frame 400H-beam
Sidewall Plate Thickness 16mm
Roller Stations 23Steps
Shaft Diameter 70mm
Main Shaft Material 45# steel with finish turning ;
Roller Material 45# Forging Steel with Chromium Plate;
Chromium Plate Thickness 0.05mm
Motor Power 5.5kw
Reducer Type 8#Cycloidal Planetary Gear Speed Reducer
Chain Wheel and Cycle Chain 1 Inch
Roll forming Speed 15-20m/min (adjusted with frequency changer).
Frequency Converter Delta
Voltage 3phase/380V/50Hz (For confirmation )
Hydraulic Tank 1 set
Hydraulic Pump Station 3Kw
Cutting Length Tolerance 10m ±1mm;
Cutting Tool Material Cr12 with quenched treatment 58°C-62°C.

Feature & Advantages of IBR Sheet Metal Roof Panel Roll Forming Machine:


1. Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.

2. Considerate service: we provide the technical support for whole life of our machines.

3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4. Easy operation:All machine cotrolling by PLC computer controlling systerm.

5. Elegant apperance:Protect the machine from rust and the painted colour can be customized

6. Reasonable price:We offer the best price in our industry.


Reference Roof Profile Drawings:


380V IBR Sheet Metal Roofing Machine PPGI Material Single / Double Layer Machine 0
