Place of Origin:
Hebei, China
Brand Name:
JN
Certification:
CE, ISO
Model Number:
SC Series

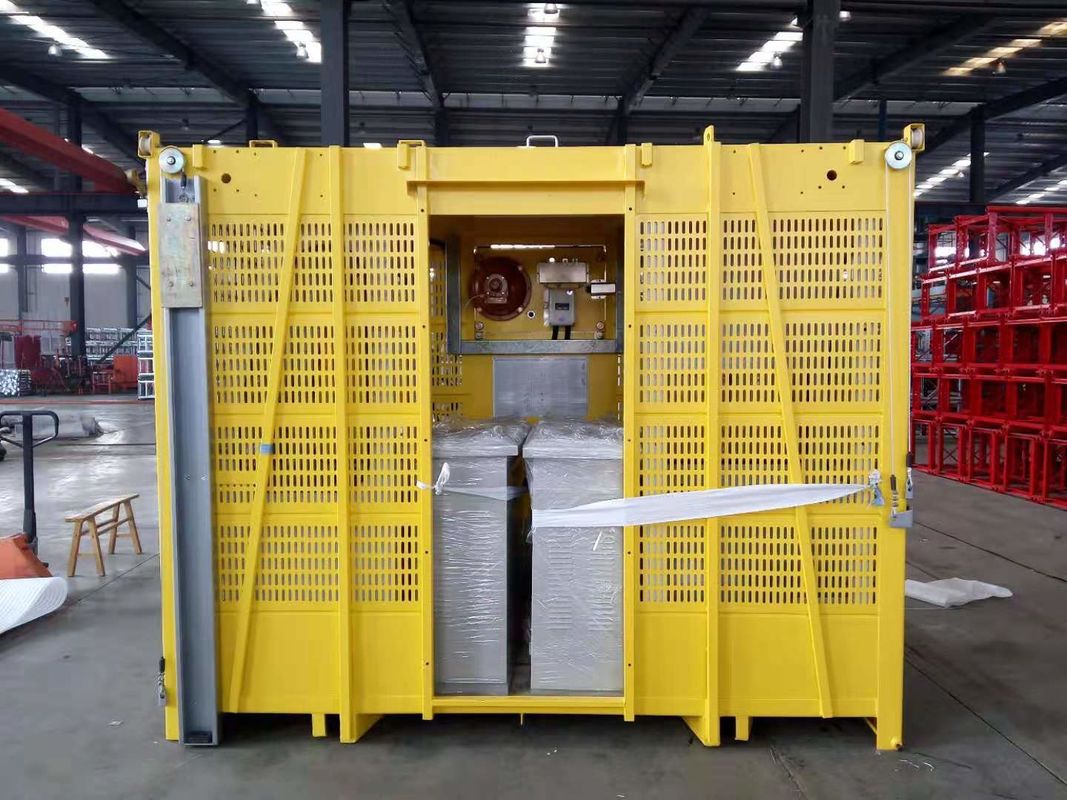

Economic 2000kgx2 Double Cabins Construction Site Elevator
A. Main Technical Parameters of Construction Site Elevator
Model: SC200/200
Reated Capacity: 2*2000kg
Lifting Speed: 36 m/min
Motor Power: 2*3*11kw

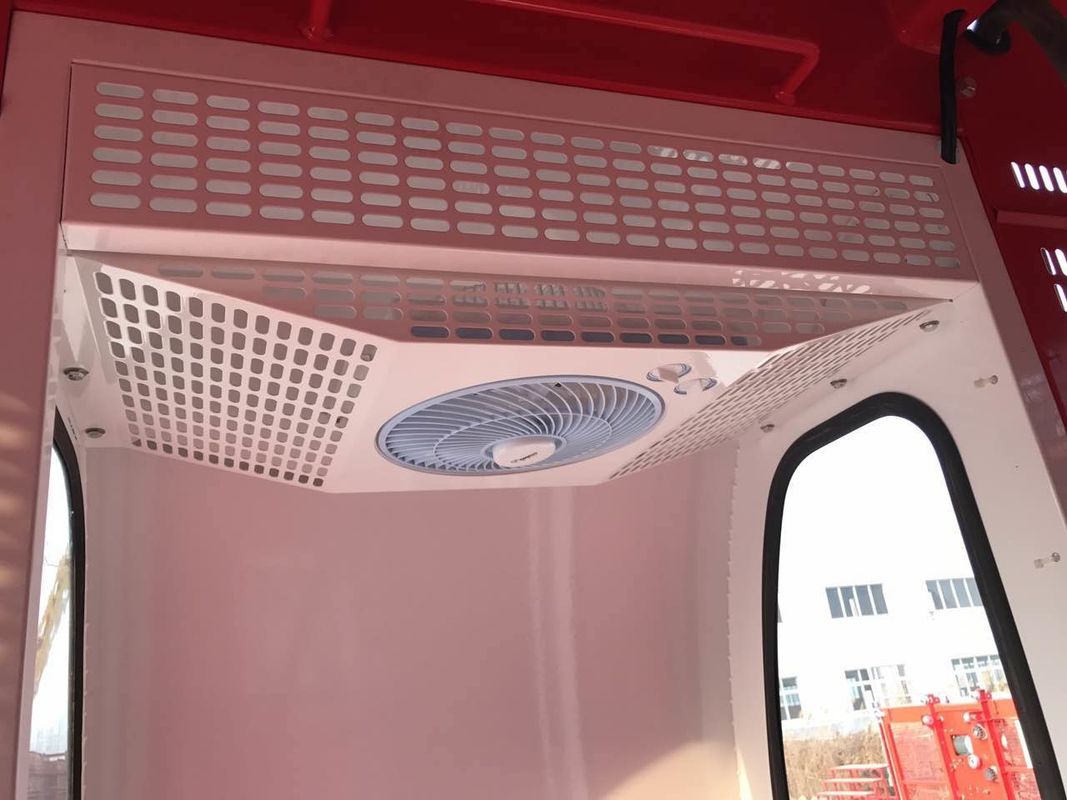

Inside Cage Size: 3*1.3*2.15m
Standard Section Height: 1.508m
B. Features of construction site elevator
1. All machines sold must be tested before shipment, 100% quality.
2. With CE certification.
3. 7*24 hours technical support by email, telephone or video online.
4. User-friendly English manual for machine using and maintain.
5. Spare parts will be offered for free.
6. Professional design drawing can be designed and provided according to customer installation site.
C. Advantages of our construction site elevator
1.High quality materials--Q345B(16Mn),It can be used in cold areas below 40 degrees below zero.
2.Rational design--Combination mast, Reduce transportation and storage costs.
3.Factory price--Manufacturers direct sales, non agents, no inter price difference.
4.Quick after-service--Global 28 branches, 24 hours waiting for you to serve.
5.Efficient team--Communicate and handle affairs in a timely and effective manner.
D. Steel Parts for Construction site elevator

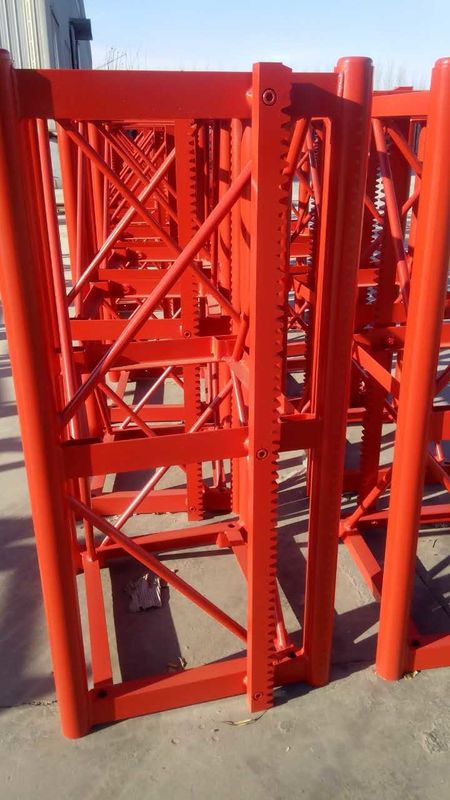

1. Mast: 650L*650W*1508H mm
2. Main limb: φ76×4.5, Q345B steel
3. Frame: high strength 5mm steel palte bending and welding , with high strength and toughness
4. Gear: each mast equipped with 2 pcs of gear (raw material 60# steel )
5. Locating pin: The surface with filamentous, not easy to fall off, easy to install
6. High strengthen bolts: M24*240 , class 8.8. Each mast equipped with 4 sets of bolts .
E.Main Performance Parameter
| Item | Unit | SC100 | SC100/100 | SC200 | SC200/200 |
| Rated loading capacity | Kg | 1000 | 2×1000 | 2000 | 2×2000 |
| Passenger number | Person | 12 | 2×12 | 16 | 2×16 |
| Rating rising rate | M/min | 36 | 36 | 36 | 36 |
| Max. lifting height | M | 200 | 200 | 200 | 200 |
| Motor power | KW | 2×11 | 2×2×11 | 3×11 | 2×3×11 |
| Cage size | M | 3*1.3*2.3 | 3*1.3*2.3 | 3*1.5*2.3 | 3*1.5*2.3 |
| Mast section dimension | M |
0.65×0.65
×1.508 |
0.65×0.65
×1.508 |
0.65×0.65
×1.508 |
0.65×0.65
×1.508 |
| Steeve rating rising weight | Kg | 200 | 200 | 200 | 200 |
| Main material | Steel Q345B | ||||
| Surface treatment | Painted or Hot galvanized | ||||
| Color | Red/yellow/blue etc. It can be OEM. | ||||
E.
