Durable Roof Building Roll Forming Machine , Steel Colored Glazed Tile Making Machine

Durable Roof Building Roll Forming Machine , Steel Colored Glazed Tile Making Machine
Durable Roof Building Roll Forming Machine , Steel Colored Glazed Tile Making Machine Durable Roof Building Roll Forming Machine , Steel Colored Glazed Tile Making Machine

Large Image :  Durable Roof Building Roll Forming Machine , Steel Colored Glazed Tile Making Machine

Product Details:

Place of Origin: Hebei, China
Brand Name: JN
Certification: CE ISO
Model Number: Customize

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Seaworthy Packing
Delivery Time: about 20 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50 Sets per month
Detailed Product Description
Material Thickness: 0.3-0.8mm Yield Strength: 235MPa 345MPa And 550MPa.
Automatic:: PLC Controlled, Full Automatic Material: PPGI,Color Steel,GI
Voltage: 380V - 440V Usage: Roof Sheet, Wall Panel
Main Power: 5.5KW Forming Speed: 4 M/min
Cutting: Hydraulic Control System: PLC
High Light:

metal roof forming machine

,

roofing sheet machine

Durable Roof Building Roll Forming Machine , Steel Colored Glazed Tile Making Machine





Description of Glazed Tile Roofing Building Making Machine:



(1) Material Thickness: 0.3-0.8mm PPGI and GI

(2) NO. of roller Stations: 18groups

(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

(5) Diameter of shaft: 70mm

(6) Frame panel thickness: 20mm

(7) Bottom frame: 350 H-section steel

(8) Motor Power: 5.5kw

(9) Driven type: 1.0"Chain

(10) Speed: 4m/min



Machine Components of Roll Forming Machine:



1. Decoiler ----------------------------------------------  1 Unit

2. Feeding guide --------------------------------------  1 Unit

3. Main roll forming machine ------------------------ 1 Unit

4. Hydraulic pressing device -------------------------1 Unit

5. Hydraulic cutting device --------------------------- 1 Unit

6. Hydraulic Station -----------------------------------  1 Unit

7. PLC computer control ------------------------------1 Unit

8.Output tables ----------------------------------------   2 Units



Specification / Technical Parameter



1 Suitable raw material PPGI/PPGL/GI/GL Steel Coils
2 Thickness of coil sheet 0.3-0.8mm
3 Feeding Coil width 1000mm/1200mm
4 Effective width 800mm/1000mm
5 Under frame 350H-beam
6 Diameter of Soild shaft 70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway
7 Roller

High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment,

hard chrome coated 0.05-0.07mm

8 Thickness of middle plate Guide pillar memorial archway
9 Forming stations 16
10 Drive type By chain(1.0 inch) link bearing model 6210
11 Power of main motor 4kw with Cycloidal reducer, Lichao, Shanghai
12 Power of pump station 4kw, Lichao, Shanghai
13 Forming speed About 15-20m/min
14 Hydraulic cutting Controlled by PLC
15 PLC DELTA, TAIWAN / Mitsubishi, Japan
16 Material of cutting blade Cr12Mov, quenching 58-62℃
17 Frequency converter

It has the advantage of slowing down before cutting, to ensure the

length accuracy(±1mm, far better than industrial

standard ±3mm).

18 Switch CHNT



Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.



Working conditions
1.working size 25m x 2m x 4m
2.Power supply 8.5kw
3.Frequency 50-60HZ
4.Wires/cables 4-6mm²(length according to workshop)
5. Labor cost 2 workers
6. Tools Spanners and screwdriver
7.Lift device 3-5t forklift or crane

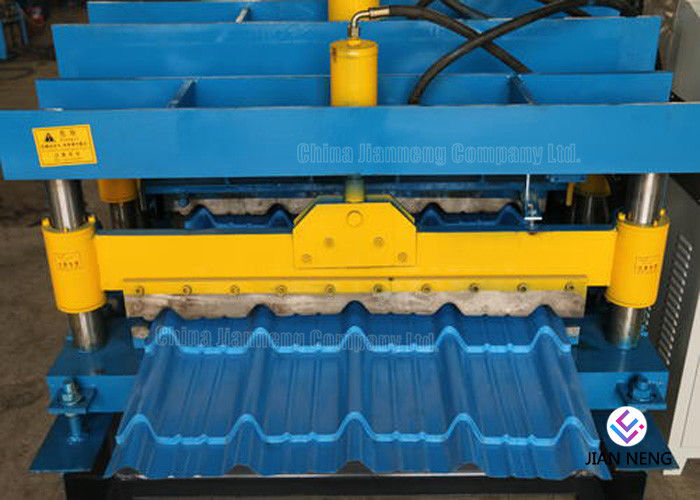

Durable Roof Building Roll Forming Machine , Steel Colored Glazed Tile Making Machine 0

Durable Roof Building Roll Forming Machine , Steel Colored Glazed Tile Making Machine 1
