Color Coated Tile Roll Forming Machine 18 Stands For Warehouses / Plants

Color Coated Tile Roll Forming Machine 18 Stands For Warehouses / Plants
Color Coated Tile Roll Forming Machine 18 Stands For Warehouses / Plants Color Coated Tile Roll Forming Machine 18 Stands For Warehouses / Plants

Large Image :  Color Coated Tile Roll Forming Machine 18 Stands For Warehouses / Plants

Product Details:

Place of Origin: Hebei, China
Brand Name: JN
Certification: CE ISO
Model Number: Customize

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Seaworthy Packing
Delivery Time: about 20 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50 Sets per month
Detailed Product Description
Material Thickness: 0.3-0.8mm Step Of Rolls: 18 Stands
Automatic:: Auto PLC Control Hydraulic Cutting Blade Material: Cr12
Shaft Diameter: 75mm Suitable Material: PPGI,GI,AI
High Light:

cold roll forming machine

,

steel rolling machine

18 Stands Color Coated Tile Roll Forming Machine For Warehouses / Plants





Working Flow of Machine



Decoiler--- Feeding---- Roll Forming ---- Cutting ---- output



Main Components:



passive Uncoiler 1pc
Guiding Equipment 1set
Roll Forming Equipment 1set
Post Cut Equipment 1set
Hydraulic Station 1pc
PLC Control system 1pc
Supporter Table 2pcs



Technical Parameter:



No.
1 Suitable material color steel sheet, galvanized steel sheet, aluminium sheet
2 Material width 1250mm or as your required
3 Material thickness 0.3-0.8 or as your required
4 Working speed 8-12m/min, can be 20-25m/min
5 Main motor power 5.5kw with cycloidal with reducer
6 Hydraulic pump power 4kw
7 Electrical control system PLC control system with inverter
8 Shaft diameter 75mm
9 Roller station 15 rows, depend on your panel profile drawing
10 Roller high grade 45# steel, hard chrome plating
11 Working time 24 hours
12 workers 1-2 only
13 Cutting head material Cr 12 mould steel with quenched treatment
14 Voltage 380V 3Phase 50Hz or as your required
15 Weight 3.5T
16 The machine size 7000mm*1500mm*1500mm




Advantages:



18 Stands Color Coated Tile Roll Forming Machine For Warehouses / Plants



1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong

2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.

3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.

5. Automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.

6. Powerful driving system: big inch train,or gear box driving system.

7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

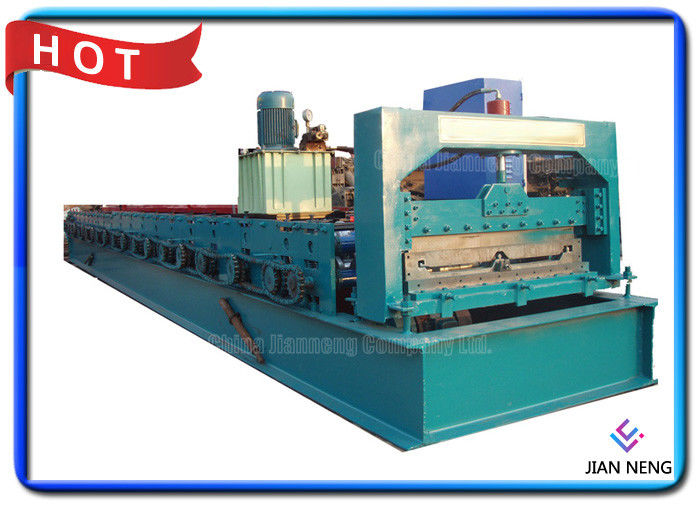

Color Coated Tile Roll Forming Machine 18 Stands For Warehouses / Plants 0

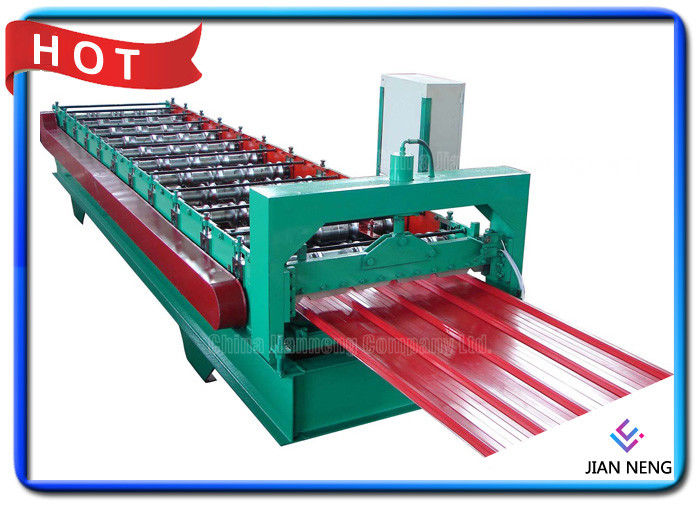

Color Coated Tile Roll Forming Machine 18 Stands For Warehouses / Plants 1
