Metal Frame Stud Roll Forming Machine Track Light Steel Material For Curving Roof

China Metal Frame Stud Roll Forming Machine Track Light Steel Material For Curving Roof supplier
Metal Frame Stud Roll Forming Machine Track Light Steel Material For Curving Roof supplier Metal Frame Stud Roll Forming Machine Track Light Steel Material For Curving Roof supplier Metal Frame Stud Roll Forming Machine Track Light Steel Material For Curving Roof supplier Metal Frame Stud Roll Forming Machine Track Light Steel Material For Curving Roof supplier

Large Image :  Metal Frame Stud Roll Forming Machine Track Light Steel Material For Curving Roof

Product Details:

Place of Origin: Hebei, China
Brand Name: JN
Certification: CE ISO
Model Number: Customize

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Seaworthy Packing
Delivery Time: about 20 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50 Sets per month
Contact Now
Detailed Product Description
Material Thickness: 0.4-1.0mm Working Speed: 0-45m/min
Automatic:: Auto PLC Control Hydraulic Cutting Blade Material: Cr12
Roller Material: No.45steel Voltage: 380V, 3 Phase 50Hz ( Or Depend On Customer’s Requirement )

Metal Frame Stud And Track Light Steel Drywall Keel Making Roll Forming Machine





Application:



Light Keel Roll Forming Machine are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.



Main Components



1. Decoiler ------------------------------------------------ 1 Unit

2. Feeding ------------------------------------------------ 1 Unit

3. Main roll forming machine ------------------------- 1 Unit

4. Hydraulic punching device ------------------------ 1 Unit

5. Hydraulic cutting device ---------------------------- 1 Unit

6. Hydraulic Station -------------------------------------1 Unit

7. PLC computer control -------------------------------1 Unit

8. Output table --------------------------------------------1 Unit



Working Flow of Machine



Decoiler--- Feeding---- Roll Forming ---- Cutting ---- output



Technical Parameter of Light Keel Roll Forming Machine:



1.Weight capacity of decoiler 2.5T
2.Appearance Size(L*W*H) 4000*800*800mm
3.Raw material /feeding sheet material colored steel & galvanized steel
4.Roller material 45# high grade steel
5.Shaft material 45# high grade steel
6.Kind of drive chain drive
7.Cutting system automatic hydyaulic cutting
8.Cutting blade material Cr 12 high grade steel
9.Frame material 300 H-high grade steel
10. Control system totally automatic PLC control system
11.Main power 7 kw
12.Roller stations 100 rows per layer
13.Speed of production 8-10m/min
14.Thickness of colored steel 0.2-0.8mm
15.Feeding width 1000mm
16.Effectiv width 850/860mm
15.Frame material 300 H-steel





Packaging Detail of stud and track roll forming machine :



1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.

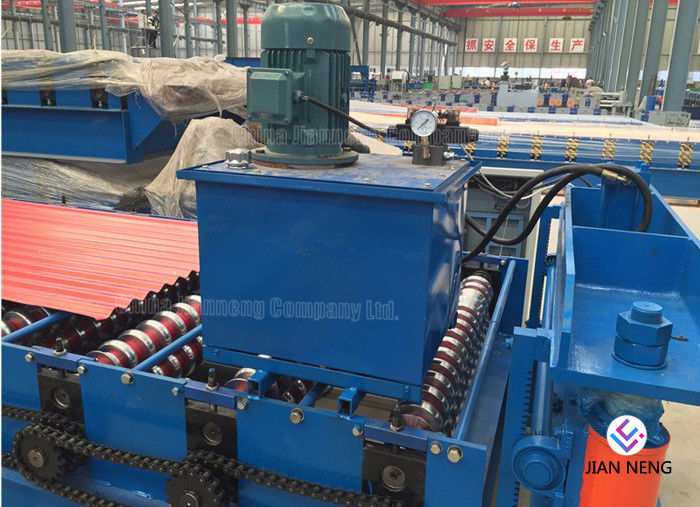

Metal Frame Stud Roll Forming Machine Track Light Steel Material For Curving Roof

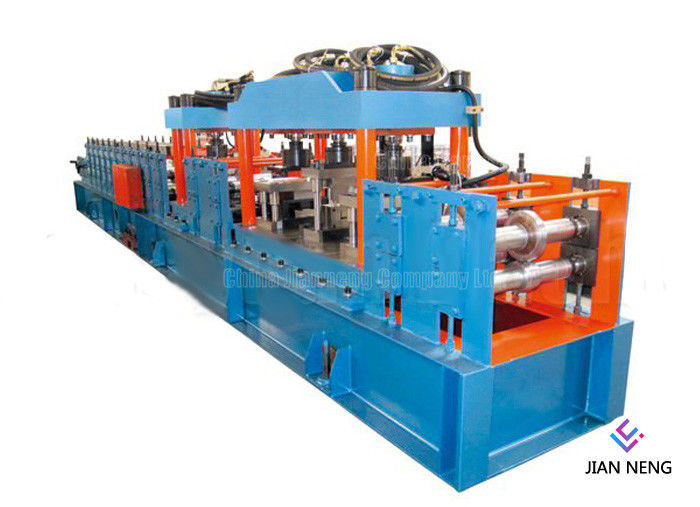

Metal Frame Stud Roll Forming Machine Track Light Steel Material For Curving Roof

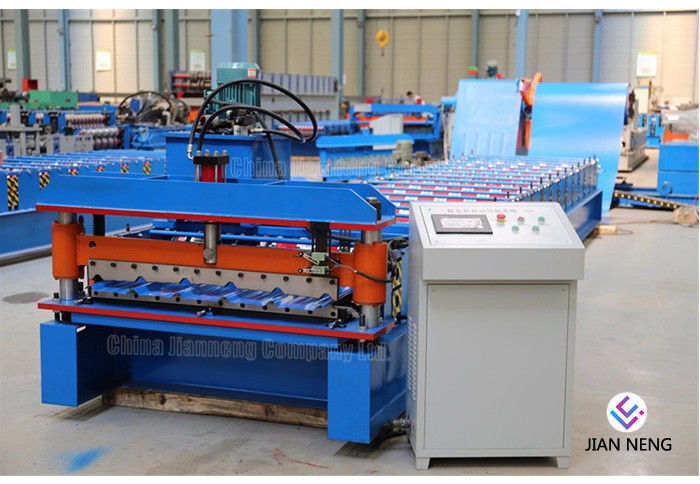

Metal Frame Stud Roll Forming Machine Track Light Steel Material For Curving Roof

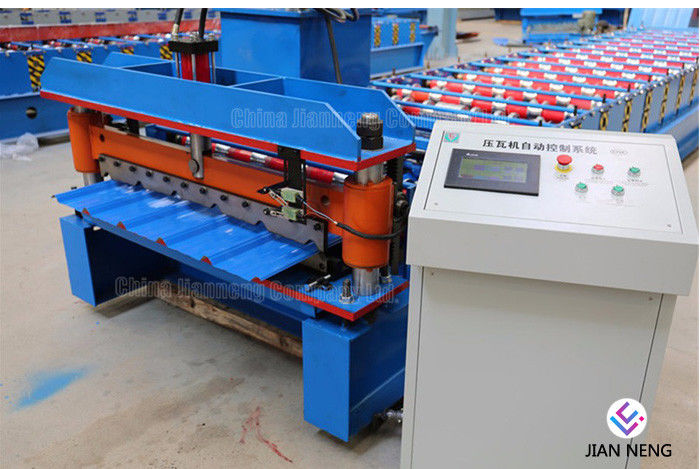

Metal Frame Stud Roll Forming Machine Track Light Steel Material For Curving Roof
