Horizontal Or Inclined Belt Conveyor For Truck Loading For Industry Handling

Horizontal Or Inclined Belt Conveyor For Truck Loading For Industry Handling
Horizontal Or Inclined Belt Conveyor For Truck Loading For Industry Handling Horizontal Or Inclined Belt Conveyor For Truck Loading For Industry Handling

Large Image :  Horizontal Or Inclined Belt Conveyor For Truck Loading For Industry Handling

Product Details:

Place of Origin: Hebei, China
Brand Name: JN
Certification: CE ISO

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Usually wooden case for small size, Container for big size.
Delivery Time: within 20 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 200 sets per month
Detailed Product Description
Belt Width: 500/550/650/800/1000mm Conveying Distance: 3-30m
Voltage: 220/380/415V/440V Work Environment Humidity: -40℃~45℃
Continuous Working Time: Not Less Than 24 Hours Belt Speed: 0.80/1.00/1.25/1.60/2.00/2.50m/s
Lifting Height: 0.8~12.5m Capacity: 25~550m³
High Light:

mobile conveyor system

,

portable conveyor systems

Horizontal Or Inclined Mobile Conveyor Belt System For Industry Handling





Description & Application:

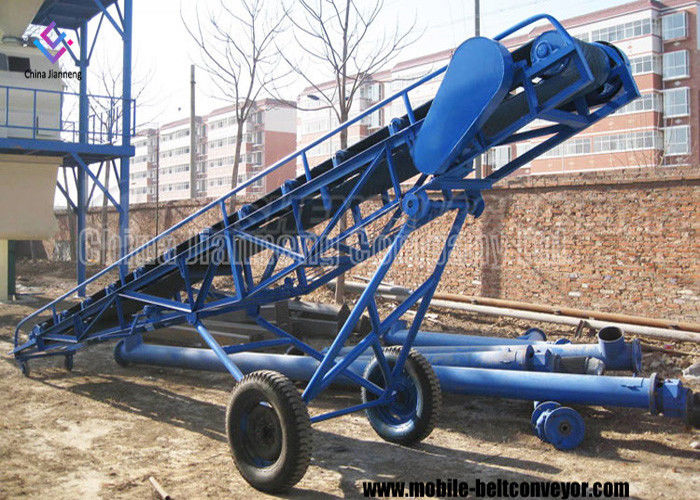

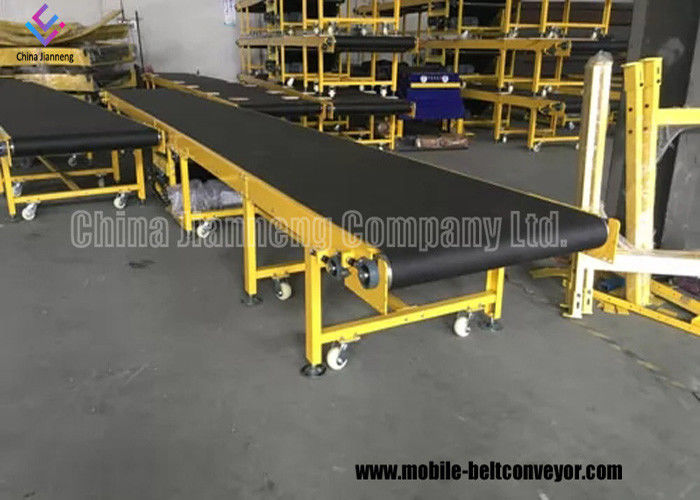

Mobile Conveyor Belt System were built to withstand the rugged conditions of any job site. It can be used for transport bulk material or bags. It can be divided into rise-and-fall and non rise-and-fall type, according to different transport requirements, the transport system can be single belt conveyor or consist of several conveyors or be combined with other conveying equipment, in addition, it can be installed horizontally or aslant to meet the needs of different production lines.



Specification / Techincal Parameter :



Model Belt Width (mm) Conveying Distance(m) Belt Speed(m/s) Lifting Height (m) Slope Angle (º)

Capacity

(m3/h)

B500 500 5-20 0.8-1.6 Adjustable 10-26 50-140
B650 650 5-20 100-250
B800 800 5-20 170-350
B1000 1000 5-20 270-550



Competitive Advantages:

1. The motors are all made by well-known manufacturers.Diesel engines can also be configured to operate far away from the power source.



2. The conveyor belt is produced by ourself and equipped with a first-class production line in China. The rubber is made of natural grade a rubber and styrene butadiene grade I rubber. The cloth adopts high density EP cloth and adopts advanced production technology to make the conveyor belt wear resistant, heat resistant, acid and alkali resistant and oil resistant.The tensile strength of our conveyor belt is no less than 15Mpa, and the tensile length is no less than 350%, which greatly improves the service life of the belt.



3. The equipment is made of non-air rubber walking wheel, which is wear-resistant and has a high life.



4. Self-produced high strength galvanized rollers to ensure high quality and long life.



5. High strength and tensile steel are selected.



6. Nc machine tool, welding robot and professional welder are adopted for welding to ensure welding quality.





Horizontal Or Inclined Belt Conveyor For Truck Loading For Industry Handling 0
