Product Details:
Payment & Shipping Terms:
|
Frame Material: | Aluminum Alloy GB6061/T6 | Roof And Wall Cover: | PVC-Coated Polyester, Waterproof |
---|---|---|---|
Fabric Color: | Transparent,White,red Or As Requested | Width Of Tent: | 3m-40m |
Temperature Range: | Stand -40°to +70°temperature | Max Wind Allowed: | 100-120km/h |
Snow Minimum: | 1,9KN/㎡ | Usage: | Party,event,wedding,church, Exhibition,warehouse |
High Light: | aluminum frame canopy tents,outside party tents |

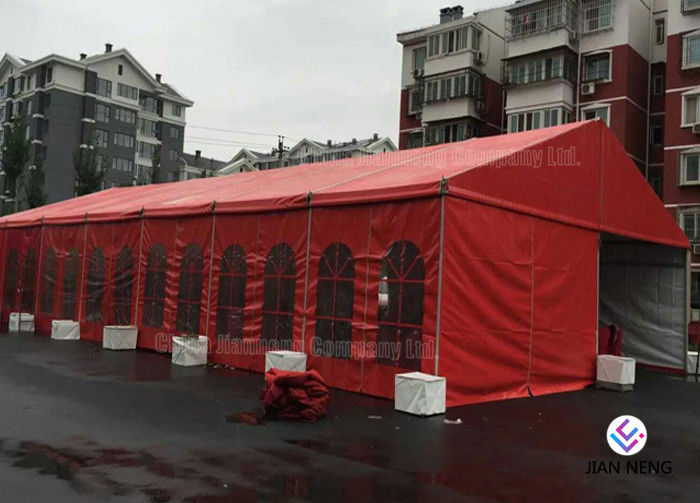

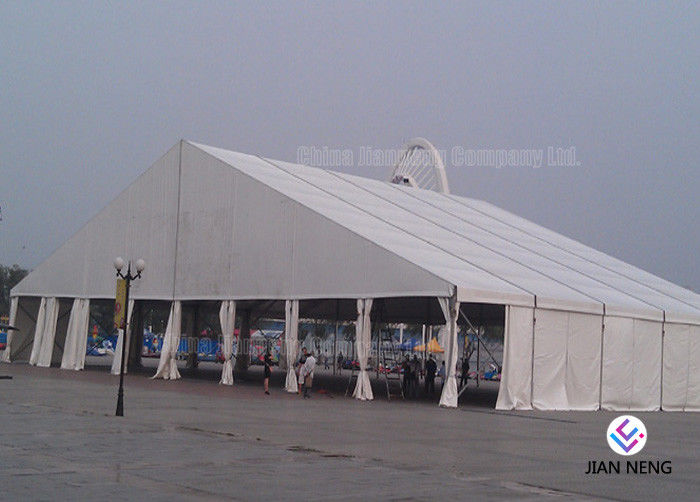

Roof Lining Decoration Big Outdoor Aluminum Tents For Commercial Party Event
1. Specifications
1) Size: from 3 meters to 40meters
2) Eave height: standard from 2.5m, 3m, 4m to 5m upon span width (or special height per requested)
3) Length: Unlimited, extended by 3m or 5m each bay
2. Frame part
1) The main parts are made of aluminum alloy and the spare parts are made of steel.
2) All aluminum components are technically anodized and all steel parts are well hot-dip galvanized.
3. Cover Part
1) The roof and sidewall fabric cover are made of double coated PVC.
2) The fabric is waterproof and UV resistant.
3) The fabric is flame retardant to DIN4102, M2 and Grade B1.
4) The weight of fabric is from 650g/sqm to 850g/sqm.
Span Width | Eave height | Ridge Height | Bay Distance | Main Profile |
4m | 2.7m | 3.4m | 3m | 122x68x3mm(4-channel) |
5m | 2.7m | 3.5m | 3m | 122x68x3mm(4-channel) |
6m | 2.7m | 3.7m | 3m | 122x68x3mm(4-channel) |
8m | 2.7m | 4.15m | 3m | 122x68x3mm(4-channel) |
10m | 2.7m | 4.5m | 3m | 203x110x4.5mm(4-channel) |
12m | 2.7m | 4.65m | 3m | 203x110x4.5mm(4-channel) |
15m | 4m | 8.03m | 5m | 203x110x4.5mm(4-channel) |
20m | 4m | 10.37m | 5m | 254x120x5mm(4-channel) |
25m | 4m | 10.37m | 5m | 254x120x5mm(4-channel) |
30m | 4m | 10.35m | 5m | 350x125x6mm(4-channel) |
40m | 4m | 10.5m | 5m | 350x125x6mm(4-channel) |
50m | 4m | 10.5m | 5m | 350x125x6mm(4-channel) |
4. Characteristics and Functions:
-They are durable , safe and strong ;
-Easy to assemble and disassemble,reusable,best choice for outdoor event;
-Suitable for decoration according to fair atmosphere;
-No bearing column in the structure,inside space used 100%;
1. Aluminum frame packed in membrane film
2. Hardware packed in solid carton box
3. PVC covers are packed in professional PVC carry bag
4. Customized package (will be extra charged)
