Product Details:
Payment & Shipping Terms:
|
| Belt Width: | 500/600/650/800/1000mm | Conveying Distance: | 3-30m |
|---|---|---|---|
| Voltage: | 220/380/415V/440V | Work Environment Humidity: | -40℃~45℃ |
| Continuous Working Time: | Not Less Than 24 Hours | Belt Speed: | 0.80/1.00/1.25/1.60/2.00/2.50m/s |
| Lifting Height: | 0.8~12.5m | Capacity: | 25~550m³ |
| High Light: | mobile conveyor system,portable conveyor systems |
||
Heat Resistant Flat Rubber Belt Conveyor For Coal Mining 130 - 320 T/H
Specification:
| Model | JN75-B500-10M |
| HS | 8428330000 |
| Belt Width | 500mm |
| Conveyor Length | 10 meters |
| Belt Speed | 1.0m/s-2.0m/s |
| Capacity | 80 Tons/Hour |
| Power | 4KW |
| Voltages | 220V/230V/380V/415V |
Belt conveyor is the conveying equipment that has big throughput, low operating cost, wide range of application , According to the support structure, there are fixed type and mobile type. According to the conveying belt, there are rubber belt, plastic belt and steel belt.
Features
1.Simple structure and easy installation.
2.Low rate of breakdown and adapt to different use condition.
3.Various design form can meet different industries.
4.Cheap cost and long working life.
5.Easy move with special wheels.

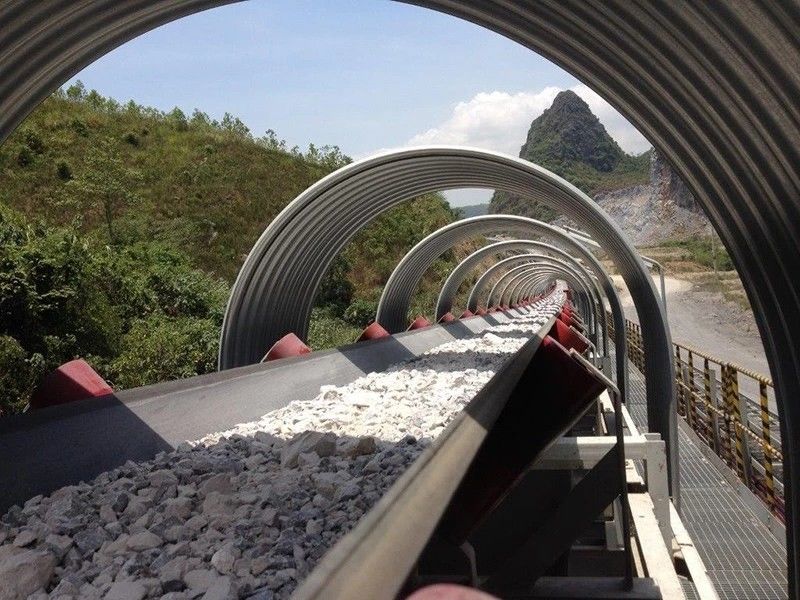

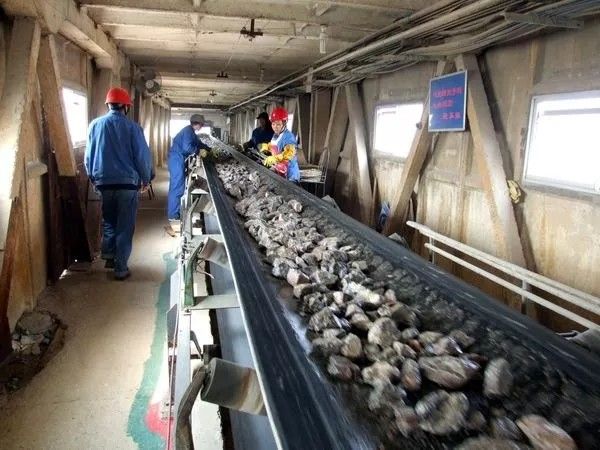

Fixed belt conveyor widely used in mining,gravel field, metallurgy, building materials,chemical industry,mineral processing,coal mining and other industries.It can convey bulk material like coal,cement,sand,cereal etc.And can convey lump material,such as rock,also it can convey 50kg bags.
Parameter Sheet:
| Belt Width (mm) | Conveyor Length (m) |
Power(KW) | Speed (m/s) |
Capacity (Tons/hour) |
| 500 | <12 | 3 | 1.3-1.6 | 78-191 |
| 12-20 | 4-4.5 | |||
| 20-30 | 5.5-7.5 | |||
| 650 | <12 | 4 | 1.3-1.6 | 131-323 |
| 12-20 | 5.5 | |||
| 20-30 | 7.5-11 | |||
| 800 | <6 | 4 | 1.3-1.6 | 278-546 |
| 6-15 | 5.5 | |||
| 15-30 | 7.5-15 | |||
| 1000 | <10 | 5.5-7.5 | 1.3-2.0 | 435-853 |
| 10-20 | 7.5-11 | |||
| 20-40 | 11-22 | |||
| 1200 | <10 | 7.5 | 1.3-2.0 | 655-1284 |
| 10-20 | 11 | |||
| 20-40 | 15-30 | |||
| 1400 | <10 | 11 | 1.3-2.0 | 893-1745 |
| 10-20 | 18.5 | |||
| 20-40 | 22-37 | |||
| 1600 | <10 | 15 | 1.3-2.0 | 1069-2195 |
| 10-20 | 22 | |||
| 20-40 | 30-45 |
Notes:The parameter above is just for reference.More models please inquiry us directly.
How to confirm the model:
1.The capacity that you require?
2.Whats the material to be conveyed?
3.The conveying length and the width of the belt?
4.The conveying angle?
