Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Name: | EP 800 4 Ply Mpa 18 |
|---|---|---|---|
| Edge: | Molded Edge Or Cut Edge | Application: | Metallurgy Cement Coal Port Chemical |
| Tensile Strength: | 6mpa-25mpa | Width: | 400mm-2200mm |
| Fabric: | CC, EP, NN | Thickness: | 4-50mm |
| High Light: | mobile conveyor system,portable conveyor systems |
||

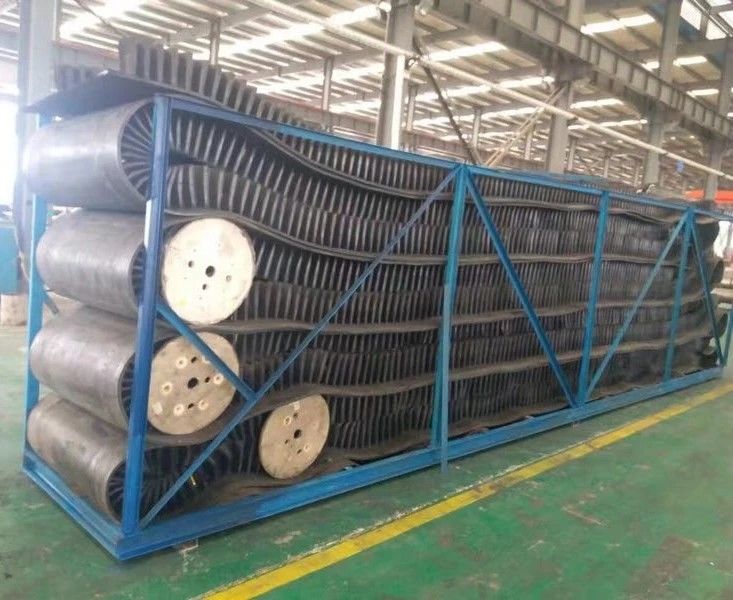

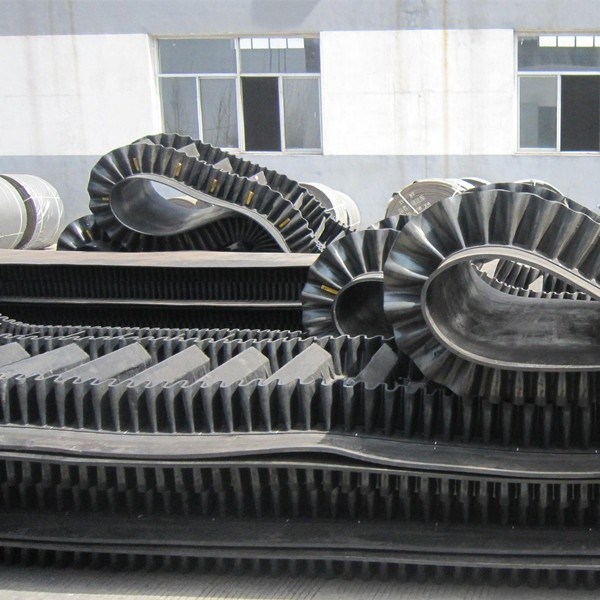

Heavy Duty Black EP NN CC Rubber Conveyor Belts For Mining Coal Industry
Conveyor belt type include :
· Anti-split conveyor belts
· Anti-abrasion conveyor belts
· Common conveyor belts
· Acid-alkali resistant conveyor belts
· Heat-resistant conveyor belts
· Cold -resistant conveyor belts
Conveyor belt feature:
· Excellent elasticity
· Anti-impact
· High-adhesion
· Good flexibility
· Trough ability
· Better stability of size
· Resistance to water
· Heat resistance in comparison to NN belt
Conveyor belt Specification and technical parameter:
| Fabric type | Fabric structure | Fabric type | Fabric thickness | Cover rubber thickness | Width | Length | ||
| warp | weft | Upper | Lower | |||||
| EP | EP | EP | EP-100 | 0.75 | 1.5-8 | 0-4.5 | 400-2500 | <=300 |
| EP-150 | 0.8 | |||||||
| EP-200 | 0.90 | 500-2500 | ||||||
| EP-250 | 1.15 | |||||||
| EP-300 | 1.25 | |||||||
| EP-400 | 1.45 | 800-2500 | ||||||
| EP-500 | 1.55 | |||||||
| Fabric type | Fabric structure | Fabric type | Fabric thickness | Cover rubber thickness | Width | Length | ||
| warp | weft | Upper | Lower | |||||
| NN | NN | NN | NN-100 | 0.75 | 1.5-8 | 0-4.5 | 400-2500 | <=300 |
| NN-150 | 0.8 | |||||||
| NN-200 | 0.9 | 500-2500 | ||||||
| NN-250 | 1.15 | |||||||
| NN-300 | 1.25 | |||||||
| NN-400 | 1.45 | 800-2500 | ||||||
| NN-500 | 1.55 | |||||||
We could offer belt with cover grade in accordance to International standard such as DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, etc.
| Standards | Cover Rubber | Adhesion | ||||
| Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
| DIN 22102 | Mpa | % | mm3 | N/mm (≤1.5mm) |
N/mm (>1.5mm) |
N/mm |
| DIN 22102-Z | 15 | 350 | 250 | 3.5 | 4.5 | 5 |
| DIN 22102-W | 18 | 400 | 90 | 3.5 | 4.5 | 5 |
| DIN 22102-Y | 20 | 400 | 150 | 3.5 | 4.5 | 5 |
| DIN 22102-X | 25 | 450 | 120 | 3.5 | 4.5 | 5 |
| Standards | Cover Rubber | Adhesion | ||||
| Tensile StrengTD | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
| AS 1332 | Mpa | % | mm3 | N/mm (≤1.9mm) |
N/mm (>1.9mm) |
N/mm |
| AS 1332-N17 | 17 | 400 | 200 | 4 | 4.8 | 6 |
| AS 1332-M24 | 24 | 450 | 125 | 4 | 4.8 | 6 |
