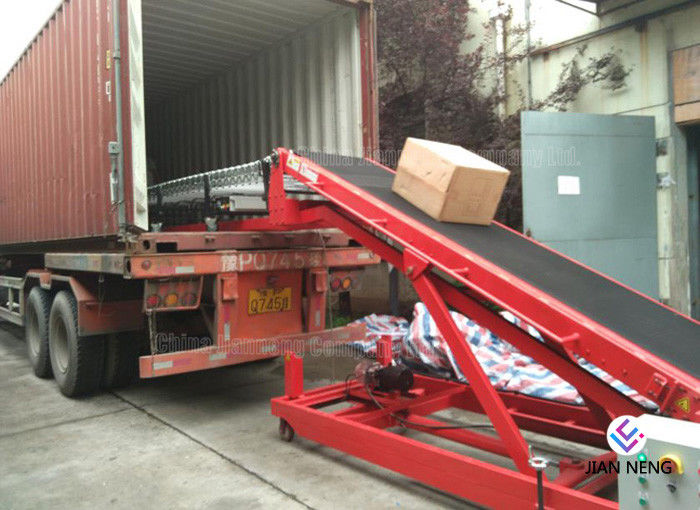

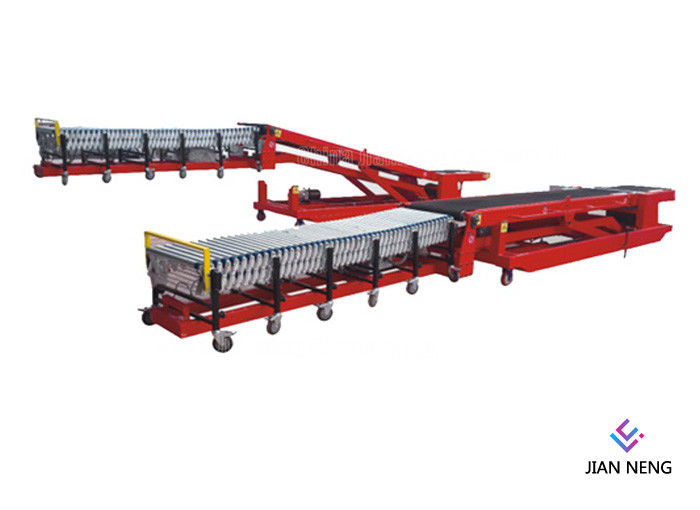

Movable Conveyor Belt For Loading And Unloading 50kg Bags To Trucks Containers Trailers

Movable Conveyor Belt For Loading And Unloading 50kg Bags To Trucks Containers Trailers
Movable Conveyor Belt For Loading And Unloading 50kg Bags To Trucks Containers Trailers Movable Conveyor Belt For Loading And Unloading 50kg Bags To Trucks Containers Trailers

Large Image :  Movable Conveyor Belt For Loading And Unloading 50kg Bags To Trucks Containers Trailers

Product Details:

Place of Origin: Hebei, China
Brand Name: JN
Certification: CE ISO
Model Number: Movable

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Usually wooden case for small size, Container for big size.
Delivery Time: within 20 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 200 sets per month
Detailed Product Description
Belt Width: 500/600/650/800/1000mm Conveying Distance: 3-30m
Voltage: 220/380/415V/440V Work Environment Humidity: -40℃~45℃
Continuous Working Time: Not Less Than 24 Hours Belt Speed: 0.80/1.00/1.25/1.60/2.00/2.50m/s
Lifting Height: 0.8~12.5m Capacity: 25~550m³
High Light:

mobile conveyor system

,

portable conveyor systems

Movable Conveyor Belt For Loading And Unloading 50kg Bags To Trucks Containers Trailers



Description & Application:



Mobile Conveyor Belt System were built to withstand the rugged conditions of any job site. It can be used for transport bulk material or bags. It can be divided into rise-and-fall and non rise-and-fall type, according to different transport requirements, the transport system can be single belt conveyor or consist of several conveyors or be combined with other conveying equipment, in addition, it can be installed horizontally or aslant to meet the needs of different production lines.



Specification / Techincal Parameter :



Belt Width 600mm
Belt Type 5mm thickness good grip green PVC belt
Belt Speed 10-22m/min,forward & reverse
Belt Motor 1.5kw
Lift Motor 2.2kw (manual lift available)
Lift Structure screw
Extendable Length 6460mm-8960mm
Adjustable Height 700mm-2500mm
Folded Height 915mm
Control Box OFF/ON,Forward/Reverse,Up/Down,Emergency Stop,Function Switch,Speed Knob,LED Display
Inside Truck Part 4m powered extendable rollers or 6m gravity extendable wheels



Benefits:



Increased Eficiency in Loose Loading & Unloading of Trucks, Vehicles, Trailers



· Increasing material handling efficiencises in loose loading and unloading of trucks by up to 50%, offering rapid return on investments. Adjustable speed from 10-40m/min Easily moved and relocated for multi-door applications (unlike telescopic boom conveyors).

· Side plates manufactured from high quality, bright zinc plated steel plate with ribbed design to ensure maximum strength and durability.

· Fully bolted design - not riveted.

· Large, welded steel handles, powder coated in Yellow, provide positive grip points for safe and easy manoeuvring of conveyor.

· All support legs have welded braces for additional strength and rigidity.

· Skatewheel Axle Support - jig welded and spanning the conveyor width, our one-piece “Constantly Vertical” all steel skatewheel and axle support ensures maximum strength throughout.

· Handling bar code scanning.



Movable on universal lockable casters



Model List:



Model Belt Width Motor Power Load Capacity Adjustable Height Variable Speed Machine Weight
JN-400 400mm 1.5 & 2.2kw 30kg/m 700-2500mm 10-22m/min 500kgs
JN-600 600mm 1.5 & 2.2kw 50kg/m 700-2500mm 10-22m/min 640kgs
JN-800 800mm 1.5 & 2.2kw 70kg/m 700-2500mm 10-22m/min 800kgs




Movable Conveyor Belt For Loading And Unloading 50kg Bags To Trucks Containers Trailers 0

Movable Conveyor Belt For Loading And Unloading 50kg Bags To Trucks Containers Trailers 1
