Product Details:
Payment & Shipping Terms:
|
| Material Thickness: | 0.2-0.8mm | Raw Material: | PPGI, PI, CR, Q235 |
|---|---|---|---|
| Usage: | Roof, Floor, Wall Ect. | Workers Needed: | 2 Person |
| Electrical Control System: | Auto PLC | Working Time: | Can Be 24 Hours |
| Coil Width: | Custom-made, 1000/1200 /1250 Mm | Forming Stations: | 13-22 Stations ( Depend On Profiles ) |
| High Light: | cold roll forming machine,roll forming equipment |
||

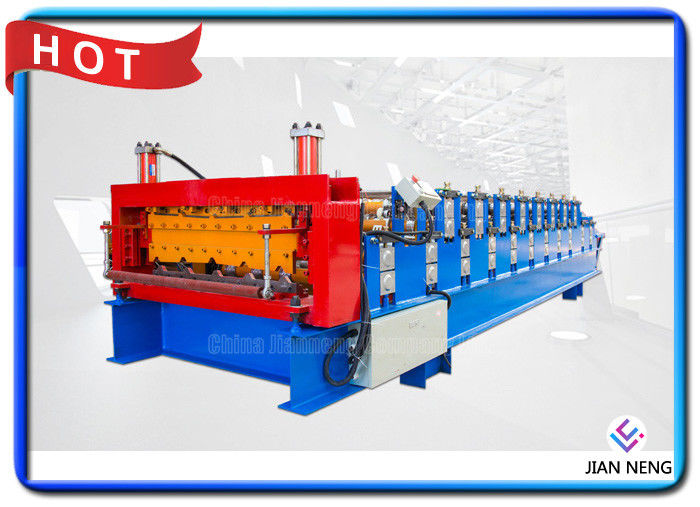

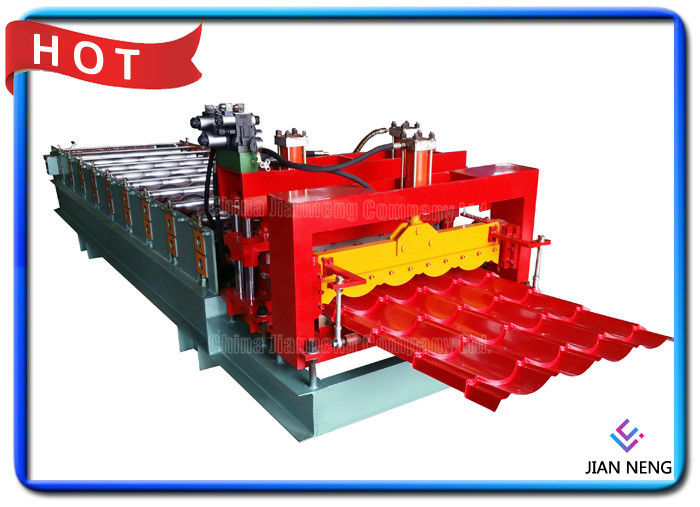

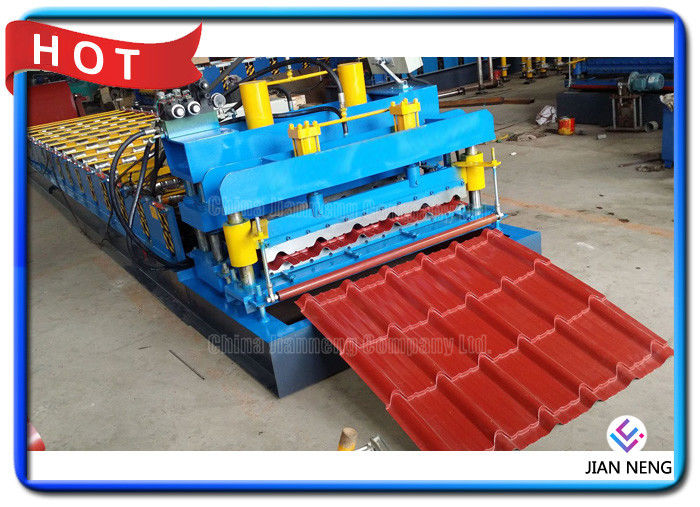

Reference Specifications of Glazed Tile Roll Forming Machine:
| No. | Main parameter of Glazed Tile Roll Forming Machine | |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 1200mm |
| 3 | Rollers | 12 rows |
| 4 | Dimensions | 7200*1550*1510m |
| 5 | Power | 4+4kw |
| 6 | Rolling material | 45# steel(plated chrome on surface) |
| 6 | Thickness of the plate | 0.3-0.6mm |
| 7 | Productivity | 4m/min |
| 8 | Diameter of the roller | Φ70mm |
| 9 | Voltage | 380V 50Hz 3phases |
| 10 | Material of the cutting plate | Cr12 |
| 11 | Hydraulic | 40# |
| 12 | Processing precision | Within 1.00mm |
| 13 | Control system | PLC control |
Main Components
· Decoiler -------------------------------------------------- 1 Unit
· Film covering device --------------------------------- 1 Unit
· Feeding guide ------------------------------------------ 1 Unit
· Main roll forming machine --------------------------- 1 Unit
· Hydraulic pressing device --------------------------- 1 Unit
· Hydraulic cutting device ------------------------------ 1 Unit
· Hydraulic Station --------------------------------------- 1 Unit
· PLC computer control --------------------------------- 1 Unit
· Output table ----------------------------------------------- 1 Unit
Working Flow
Decoiler --- Fedding Guide --- Film Covering --- Roll Forming --- Pressing --- Cut-to-length --- Run out table
Feature & Advantages of Metal Roof Panel Roll Forming Machine:
1. Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.
2. Considerate service: we provide the technical support for whole life of our machines.
3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4. Easy operation:All machine cotrolling by PLC computer controlling systerm.
5. Elegant apperance:Protect the machine from rust and the painted colour can be customized
6. Reasonable price:We offer the best price in our industry.
