Product Details:
Payment & Shipping Terms:
|
| Material Thickness: | 0.4-0.7mm | Yield Strength: | 235MPa 345MPa And 550MPa. |
|---|---|---|---|
| Automatic:: | PLC Controlled, Full Automatic | Material: | PPGI,Color Steel,GI |
| Rolling Shaft Material: | 45 # Steel | Roller Speed: | 0-12m/min(cutting Time Is Not Include) |
| High Light: | metal roof forming machine,metal roof roll forming machine |
||
345 Mpa Metal Roofing Machine Curving Machine With Cr12 Corrugated Punching Moulds For Roof Panel
Description :
Roof curving crimping machine Steel Crimping Machine Curved Roofing Sheet Machine hydraulic curving machine roof curving machine is also the nickname of the following name. This type roofing sheet crimping machine has two types: one is for motor type and the other is hydraulic type
1. Rolling Speed : 0-12m/min(cutting time is not include)
2. Steel sheet Thickness: 0.7-1.2mm galvanized sheet, color painted coils
3. Roller Stations: about 16 stations
4. Roller Material : 45# steel, fire treated, HRC 58-62
5. Shaft Material and Dia: 45# steel, coated with chrome, fire treated, HRC 58-62
6. Maim Motor Power: 7.5kw
7. Hydraulic Pressure: 12Mpa
8. Tolerance: +1.5mm
9. Power supplier:380V, 50HZ,3 phase

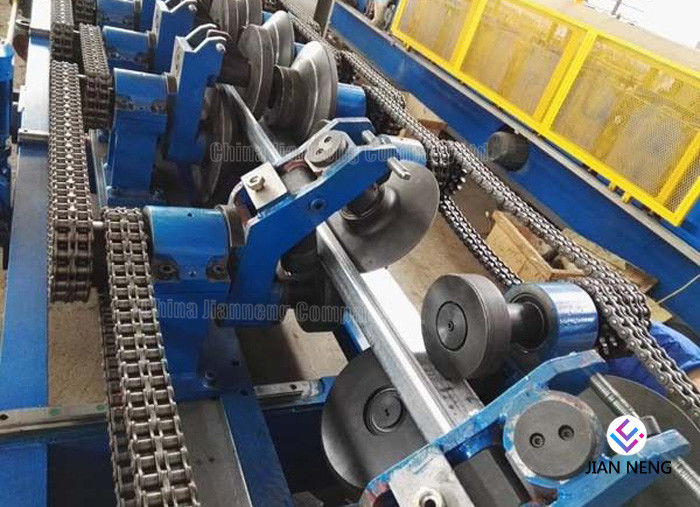

10. Way Of Drive: Chain driven
11. Machine weight: about 6 tons
Work Flowing:
Decoiler --- Fedding Guide --- Film Covering --- Roll Forming --- Pressing --- Cut-to-length --- Run out table
Specification / Technical Parameter
| Item | Specification | |
|
Material |
Type | Pre-painted steel coil & galvanized coils |
| Thickness | 0.3-0.7mm | |
| Yield strength | 235-345Mpa | |
| Roller material | No.45 forged steel | |
| Forming speed | About 20-25m/min | |
| Output speed | 8-12m/min | |
| Speed adjusting mode | AC Frequency | |
| Cutting mode | Hydraulic cutting | |
| Cutter material | Cr12 mould steel | |
| Length measurement | Encoder | |
| Control mode | Mitsubishi PLC | |
| Main motor | 7.5KW | |
| Hydraulic station motor | 2.2KW | |
Components of Roofing Machine
| Decoiler (manual/ hydraulic decoiler for option) |
1set | |
| Feeding & guiding device | 1set | |
| Main roll forming machine | 1set | |
| Hydraulic cutting system | 1set | |
| Controlling system | 1set | |
|
Run out table (auto. Stacker for option) |
1.5m/ pc, 2 pcs | |
Feature & Advantages:
345 Mpa Metal Roofing Machine Curving Machine With Cr12 Corrugated Punching Moulds For Roof Panel

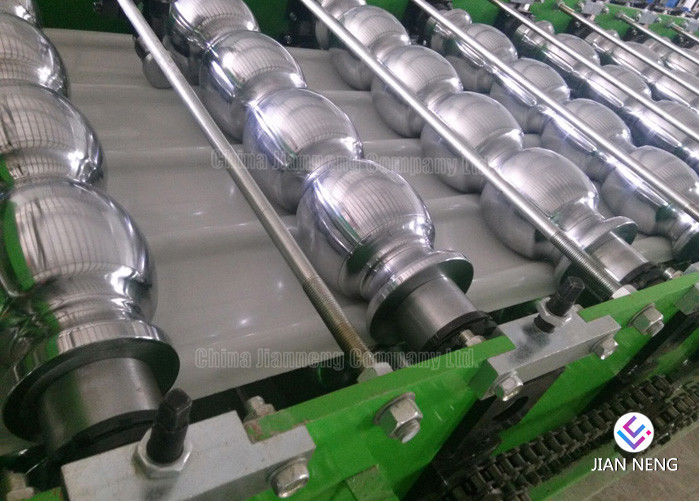

1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. powerful driving system: big inch train,or gear box driving system.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
