Product Details:
Payment & Shipping Terms:
|
| Material Thickness: | 0.3-0.8mm | Yield Strength: | 235MPa 345MPa And 550MPa. |
|---|---|---|---|
| Automatic:: | PLC Controlled, Full Automatic | Material: | PPGI,Color Steel,GI |
| Power: | Hydraulic | Voltage: | 380V/50Hz/3 Phase Or As Requested |
| High Light: | metal roof forming machine,metal roof roll forming machine |
||

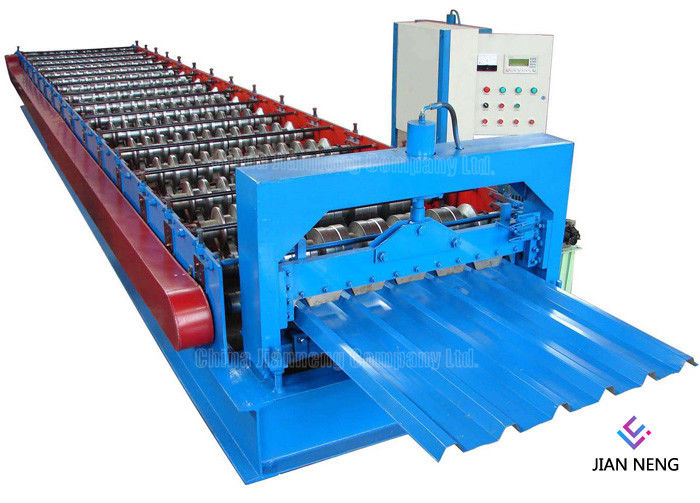

380V Metal Roof Forming Machine In Speed Of 0-15 m/min
Description & Application:
The Roof Panel made by our Metal Roofing Forming Machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,
ancient architectures and modern villas.
Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding
Specification / Technical Parameter
A. General
| Suitable Material | Q235 or equivalent |
| Material Thickness | 0.25-0.8 mm |
| Material Width | 914, 1000, 1200, 1220 or 1250, as per the drawing |
| Dimension | About 5.9*1.3*1.1m(L*W*H) , as per the drawing |
| Working Space | About 15.9*2.8m(L*W) , as per the drawing |
|
Length of the Sheet |
You can set the length according to your need. It is controlled by PLC which can ensure the accuracy of ±1mm. |
| Cutting |
Automatically stop and cutting when it comes to the set length. |
B. Components Details
| Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
| Main Frame | 350# steel. More stable and no shaking. |
| Middle Plate |
16mm. We use thicker plates to ensure stability of our products. |
| Forming Steps | 11-16, according to the drawing. |
| Shaft Material | Φ70 mm, high grade 45# steel. |
|
Treating process: tempering- finish turning, high rigidity, hard to deform. |
|
|
Cutting Blade Material |
Cr12, hardness HRC60-62. |
| Treating process: heat treatment- plane abrasion- wire electrode cutting. |
C. Electric Components
| Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
| Screen | 7 inch touch screen, easy to operate. |
| PLC | Delta DVP 14ES |
|
well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
|
| Frequency Converter |
DeltaVFD- M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
|
Length Measurement Device |
Omron, made in Japan. |
| It features with high accuracy and stability. |
Feature & Advantages:

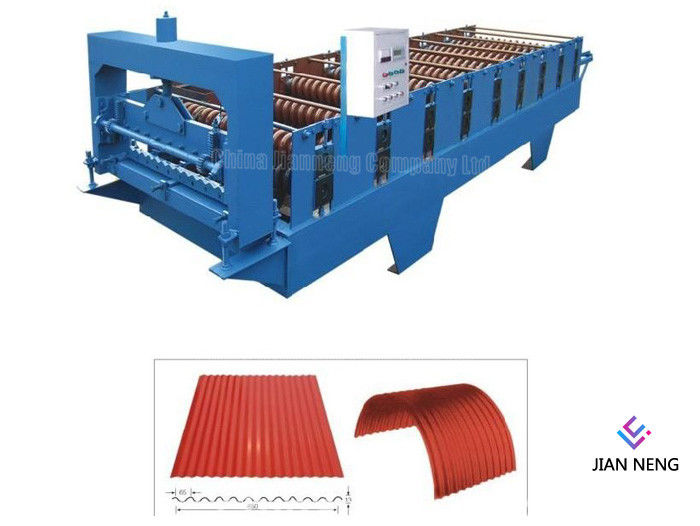

380V Metal Roof Forming Machine In Speed Of 0-15 m/min
1. Support many kinds of material like galvanized steel, colored steel, etc. And the material thickness from 0.8-1.5mm could be done.
2. Support to make various colors, shapes design large span roofing sheets in high speed.
3. Save energy and workforce, as nearly all the work could be done by machine automatically.
4. We use brake system on decoiler for in case of stopping suddenly, de-coiler can be stopped easily.
5. We take big diameter rollers, which can make the appearance of finished arch more beautiful.
6. The rollers and shafts are connected with pin inside and screw outside, and with reinforcing design on both sides of rollers, which can fix the rollers and shafts tightly without deformation.
