Product Details:
Payment & Shipping Terms:
|
| Material Thickness: | 0.3-0.8mm | Material Tension Grade: | 550MPa |
|---|---|---|---|
| Automatic:: | Auto PLC Control Hydraulic | Forming Rollers: | 45# Steel, Hard Chrome Coated |
| Weight: | 8000KGS | Usage: | For Wall And Roof |
| High Light: | roll forming equipment,steel rolling machine |
||

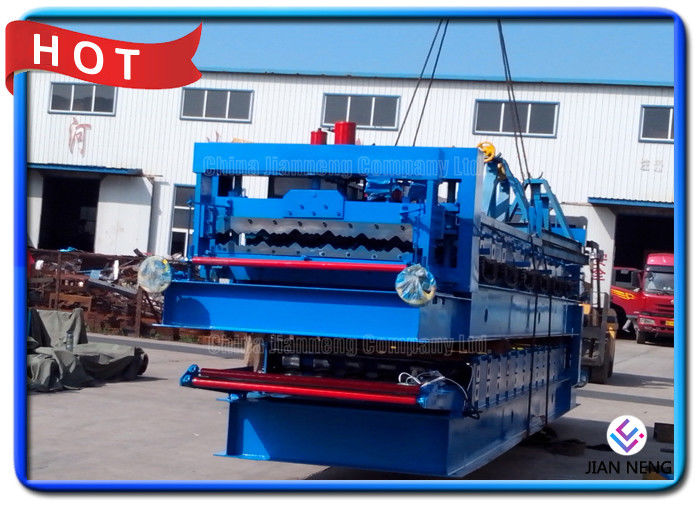

0.3-0.8mm Thickness Corrugated Roll Forming Machine For Wall And Roof Use
Application:
This wall & roof panel roll forming machine used as the roofing of factory, warehouse. It is easy to realize the reliable and safety installation.
Working Flow of Machine
Decoiler--- Feeding---- Roll Forming ---- Cutting ---- output
Feature:
Specification / Technical Parameter
| Suitable material | color steel sheet;0.3-0.8mm, |
| Working speed | about1.5-5m/min |
| stress | 235MPa,345MPa,550MPa. |
| Power | Main motor power: 5.5 Kw(Depend on final design) |
| Hydraulic station power: 4Kw(Depend on final design) | |
| Material of forming rollers | No.45 steel, plated with chrome on surface. |
| Material of cutter,pressing die | Cr12 mould steel with quench treatment, HRC58-60 |
| Material of shaft | High quality 45# steel, Roller grinder milling. |
| Shaft diameter | 72mm |
| Controlling system | Mitsubishi PLC & converter |
| Total weight of machine | About 9500KGS |
| Machine’s size | about 18m×1.8m× 1.5m (Depend on final design) |
Advantages:

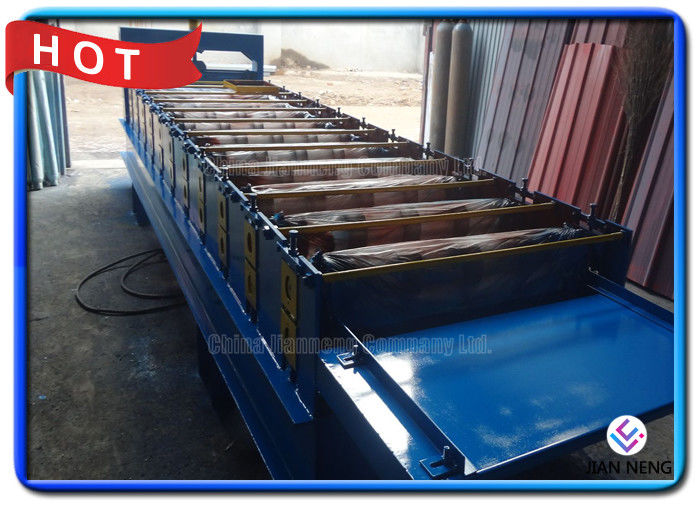

0.3-0.8mm Thickness Corrugated Roll Forming Machine For Wall And Roof Use
1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5. Automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. Powerful driving system: big inch train,or gear box driving system.
7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
