|Material:||Q235 Steel||Cross Section Size:||2.5m *1.2m|
|Surface Treatment:||Spray Painted, Hot Dip Galvanized||Application:||Highways Subways Bridges Tunnels Construction|
|Model Avaiable:||50, 75, 100||Working Height:||100m (standard)|
stairwell scaffold tower,
building scaffold tower

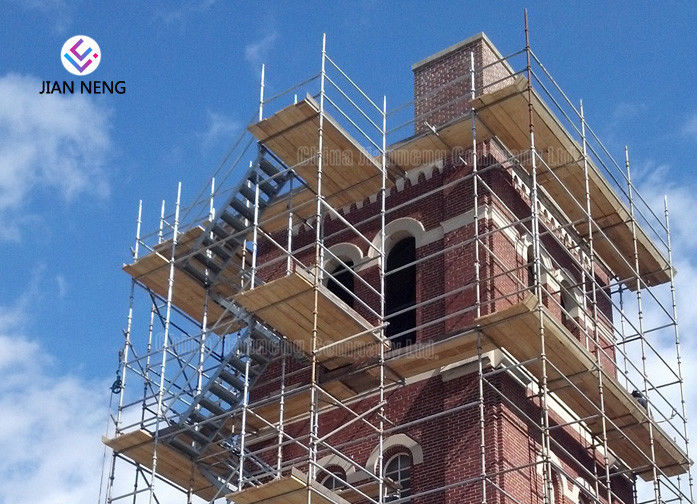

High Pier Construction Scaffold Stair Access Towers , Convenient Disassemble And Assemble
Brief Introduction :
Stair towers are a necessity when safe and quick temporary access is needed on any new construction, rehabilitation, or industrial project. It is safe and convenient, easy and flexible to assemble and disassemble, and has good bearing capacity. It is highly praised by clients for its advantages.
The main components of safety climbing scaffold are vertical bar, cross bar and inclined bar.

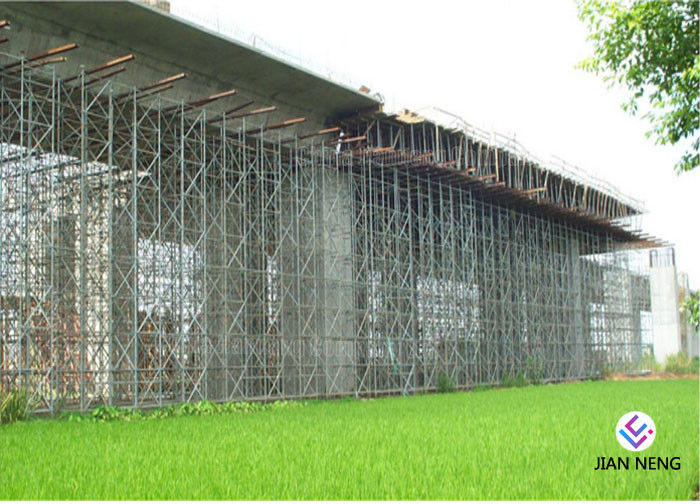

The Socket And Spigot Joints Type Scaffolding Stair Access Towers is widely used in construction of houses, Bridges, overpasses, tunnels, culverts, chimneys, water towers, DAMS and large-span scaffolds.
Technical Parameter of Standard 75 Construction Scaffold Stair Tower With Ladder:
1. Material: Q235
2. Diameter of main materials : 48mm
3. Size: 2500mm*1200mm*3000mm
4. Thickness of vertical tube : 3.25mm
5. Thickness of horizontal tube: 2.2mm
6. Thickness of oblique tube: 1.5mm
7. Height each piece: 3000mm
8. Weight of each piece : 75KG
The stair tower can be put together very quickly from frames and pre-assembled stairway elements. Intermediate exits permit safe access to all work-deck levels. The stair tower is anchored to the structure as required by the usage situation, and complies with the relevant safety regulations.
