|Conveying Capacity:||50t/h||Belt Width:||500/550/650/800/1000mm|
|Voltage:||220/380/415V/440V||Work Environment Humidity:||-40℃~45℃|
|Continuous Working Time:||Not Less Than 24 Hours||Lifting Power:||1.5-3kw|
mobile conveyor system,
portable belt conveyor systems

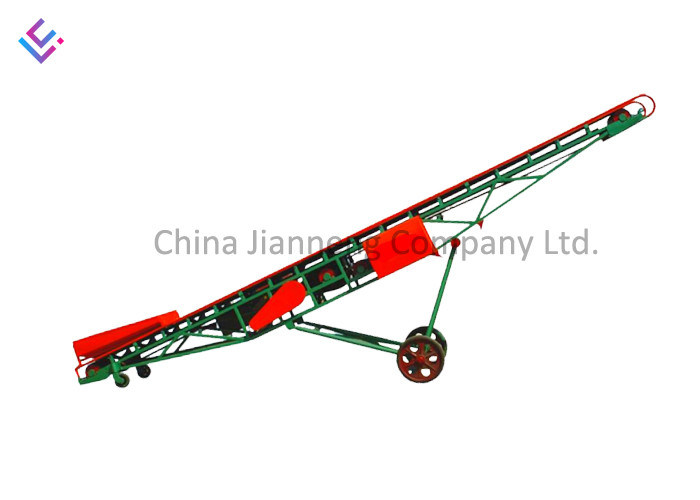

Economic And Reliable Mobile Conveyor Belt System with conveying capacity 50t/h
Description & Application:
The mobile conveyor belt system is mainly used for conveying, loading and unloading of bulk grain, grain or small grain materials.The machine body is composed of a mainframe frame and a telescopic frame, which is divided into two types of machines, namely, the high-altitude transport and horizontal transport. The mobile conveyor belt system has the function of automatic lifting, front and rear stretching, reasonable structure, stable and reliable, beautiful and practical, easy to move and multi-purpose.
Specification / Techincal Parameter :
|Technical Parameter of mobile conveyor belt system|
|Conveyor belt width||500mm, 550mm, 650mm, 800mm, 1000mm (conveyor belt width can be customized according to customer requirements)|
|Conveyor length||12(8+4)m, 15(10+5)m, 16(10+6)m, 18(10+8)m, 18(12+6)m, 20(12+8)m, 22(14+8)m (conveyor length can be customized according to customer requirements)|
|Conveyance||480 bale /h for packaged grain, 50-150 t/h for bulk grain|
|Transmission power||2.2 kw / 3.0 kw / 4.0 kw / 5.5 kw / 7.5 kw|
This mobile conveyor belt system has the function of transporting bulk grain or packaged grain, electric lifting and stretching.
1. The motors are all made by well-known manufacturers.Diesel engines can also be configured to operate far away from the power source.
2. The conveyor belt is produced by ourself and equipped with a first-class production line in China. The rubber is made of natural grade a rubber and styrene butadiene grade I rubber. The cloth adopts high density EP cloth and adopts advanced production technology to make the conveyor belt wear resistant, heat resistant, acid and alkali resistant and oil resistant.The tensile strength of our conveyor belt is no less than 15Mpa, and the tensile length is no less than 350%, which greatly improves the service life of the belt.
3. The equipment is made of non-air rubber walking wheel, which is wear-resistant and has a high life.
4. Self-produced high strength galvanized rollers to ensure high quality and long life.
5. High strength and tensile steel are selected.
6. Nc machine tool, welding robot and professional welder are adopted for welding to ensure welding quality.
